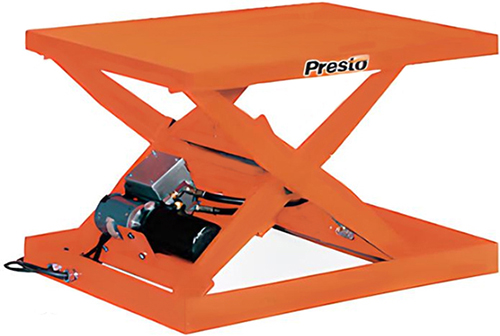

Presto WXS36 scissor lift tables are ideal for lighter duty applications that require getting the load to an ergonomic working height. These quality lift tables can lift loads weighing up to 1,000 or 1,500 LBS with a maximum lift height of 41 ¼" in 29 or 36 seconds (depending on model). The platform size is 36”W x 48”L, platform sizes up to 48”W x 60”L available for an upgrade fee - see options below. A hand pendant on a coil cord controls the lift and lower functions (optional foot pedal control available). A 115 volt, single phase, ⅓ H.P. electric hydraulic intermittent duty motor powers lift and lower functions. Open access internal power unit and hinged platform for cylinder access allow for quick and easy maintenance. All steel construction and industrial grade components means Presto WXS36 scissor lift tables are designed to provide years of reliable service.
The Presto WXS36 Scissor Lift Tables are built to order with an estimated lead time to leave the warehouse of 10 to 15 business days.
Specifications:
- Capacity: 1000 LBS or 1500 LBS
- Platform Size: 36”W x 48”L (custom sizes up to 48”W x 60”L available - see options below)
- Lowered Platform Height 5¼” | Raised Platform Height 41 ¼"”
- Lift speed from lowered to max lift height: 29 or 36 seconds

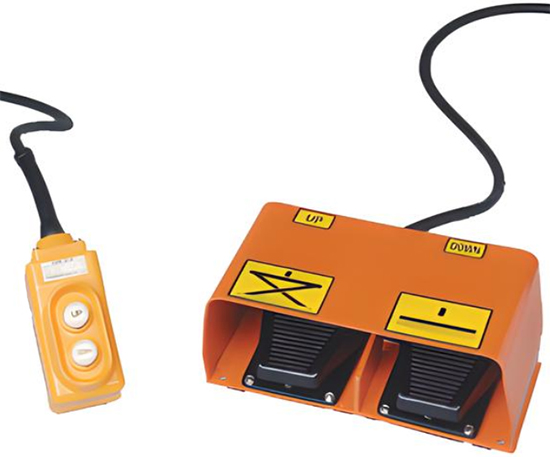

- Standard hand pendant control (foot control available)
- Internal ⅓ H.P., 115V/1PH/60Hz motor
- Power up / power down deck
- 1/2" steel plate scissor legs
- Hinged platform allows for easy access to cylinders
- Easy access internal power unit
Options:
- Foot control - replaces hand control. Model FTC - Contact HOF For A Quote
- Oversized Platform - Choose from 24" to 36" Wide & 48" To 60" Long. Increased lead time. Model XS36-OSP - Contact HOF For A Quote
