The Presto PPS2600-62AS straddle stacker is a full featured, powered drive and powered lift pallet stacker with a 2,600 LB capacity up to the maximum raised fork height of 62". This Presto pallet stacker features a straddle leg width adjustment of 40" to 50" I.D. and a fork width adjustment of 12-1/2" to 27" O.D. allowing it to be used with a wide variety of pallet and skid sizes. Travel Speed is approximately 2.8 m.p.h. loaded and 3.4 m.p.h. unloaded. The Turtle speed feature when activated reduces drive speed by 50% for easier and more precise load positioning. The ergonomic control handle features pincode access, comfort-grip finger tip speed and lift controls with redundancy for right or left hand operation, and an auto-reverse belly switch for operator safety. Two 12v 75aH AGM batteries, a 115V on-board charger, and battery charge indicator come standard. The Presto PPS2600-62AS straddle stacker is light-weight, quiet, and capable making it ideal for use on loading docks, in warehouses, and on shop floors.
.gif)
Presto Pallet Stacker model PPS2600-62NAS has an estimated lead time to leave the warehouse of 5 business days.
Specifications:

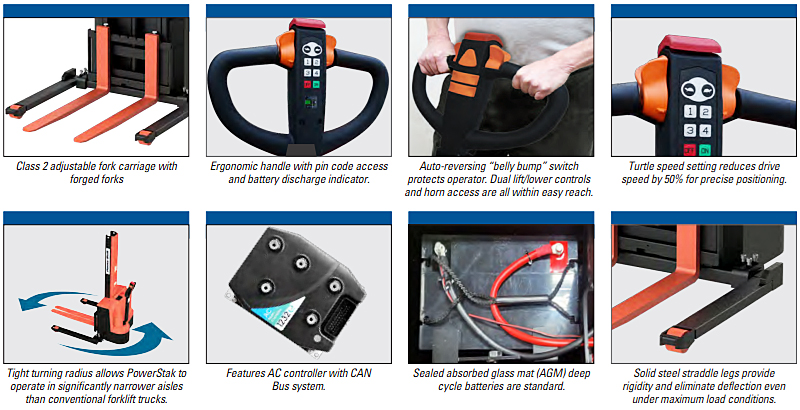

- Keypad on tiller handle allows for pin Code access to operate the stacker
- Capacity at 24" load center: 2,600 LBS
- Lowered Fork Height 2-3/4" | Max. Raised Fork Height 62"
- Narrow mast and offset handle design reduce blind spots
- (2) 12V 75ah AGM batteries 115v on-board charger & battery charge indicator
- Ground clearance: 2¾" / NOT RECOMMENDED FOR USE ON GRADE
- Travel Speed: approx. 3.4 m.p.h. loaded / 3.6 m.p.h. unloaded
- Turtle speed feature reduces drive speed by 50% for precise load positioning or when working in tight spaces
- Lift Speed: 15 seconds for 59.25" of vertical travel
- Class II carriage with 4 locking positions
- Each forged steel fork is 4"W x 42"L (24" load center)
- Adjustable Fork Width: 12½" to 27" O.D.
- Adjustable leg width: 40" to 50" I.D. (48" to 58" O.D.)
- Ergonomic handle features keypad, redundant finger tip controls, & "belly" switch
- E-Stop emergency stop switch & Safety key switch
- 10" x 3" Polyurethane drive wheel and polyurethane load wheels
- Overall Dimensions: 48" to 58"W x 69"L x 80"H
- Weight: 1200 LBS
- Limited Warranty: 1 year on welded structural frame. All other parts are 90 days parts and 30 days labor.
