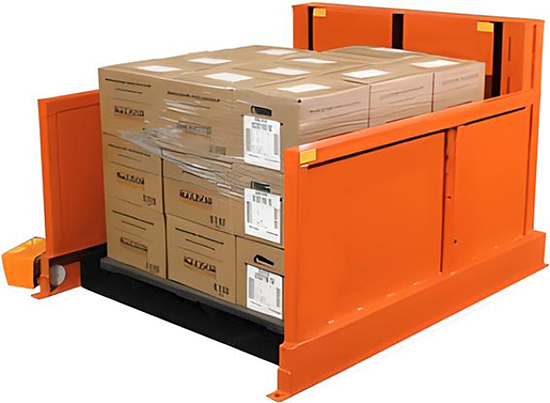

Presto P4-25-5248 Floor Level Pallet Lift

Presto P4-25-5248 Low Profile Pallet Lift
Presto P4-25-5248
Click to see More Photos
Back to List
Call/Email For Pricing
SKU: P4-25-5248


Scroll Down for More Info

The Presto P4-25-5248 floor level pallet lift is designed to allow a single operator to load a pallet at the floor level using a manual pallet jack and then raise the pallet to a comfortable working height. The maximum capacity is 2,500 lbs and the platform size is 52”W x 48”L. Narrow side panels provide for safe operation while allowing the operator to reach the load easily. This low profile pallet lift is controlled using a NEMA 4 hand control on a 10’ cord that includes a magnet for convenient storage. A photo-electric toe guard aids in ensuring safe operation. Ground level pallet lift is easily transported to alternative locations using a manual pallet truck. The Presto P4-25-5248 comes standard with a 1HP 110V single phase hydraulic motor, other voltages available. All steel construction with durable enamel finish for years of reliable service.


The Presto P4-25-5248 Floor Level Pallet Lift is built to order with an estimated lead time to leave the warehouse of 4 to 5 weeks.



  • 2,500 LB capacity
  • Platform Size: 52"W x 48"L
  • Lowered /Raised Height: ³⁄₈" / 28"
  • Lift Speed: 22 seconds
  • 1HP, 115V, 1PH Motor (other voltages available)
  • NEMA 4 Hand control with magnet on a 10' cord (foot control available)
  • Narrow side pannels
  • Photoelectric toe guard
  • Easily transported with a manual pallet jack
  • Overall Size: 59"W x 61"L
  • Weight: 1,620 LBS
  • Custom platform sizes available
