Presto P3-SPRING Pallet Positioner

Presto P3-SPRING Pallet Positioner
Click to see More Photos
Back to List
Call/Email For Pricing
SKU: P3-SPRING



Scroll Down for More Info

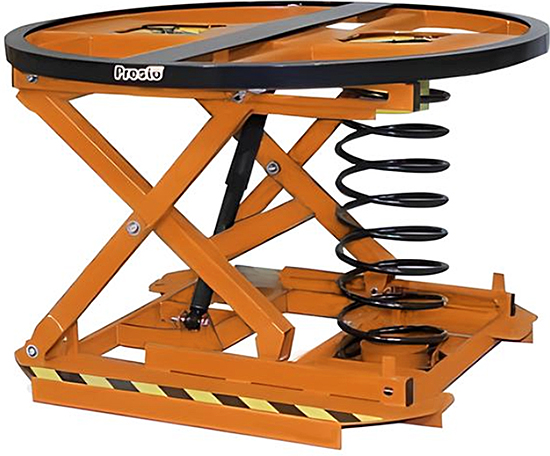

The Presto P3-SPRING pallet positioner is fully automated and designed to ergonomically enhance the efficiency of manual pallet loading & unloading by reducing worker bending and stretching motions, and eliminating the need to walk around the pallet. Industrial duty calibrated springs automatically raise or lower the pallet as weight is removed or added. Pallet positioner comes with set of 3 calibrated springs to handle loads weighing 400 LBS to 4,500 LBS. An anti-friction turntable top spins the pallet easily allowing the operator to stay stationary while loading and unloading. The Presto P3-SPRING pallet positioner features a design where the base and all components fit within the diameter of the turntable ring allowing the operator to get very close to the positioner at any point around the ring with no obstructions to reach over. Can be moved easily with a forklift using integral fork Pockets measuring 6³⁄₈" W x 1¾" H on 29³⁄₈" centers.



The Presto P3-SPRING Pallet Positioner normally leaves the warehouse in 5 business days.



Specifications:

  • 400 LB to 4,500 LB capacity
  • Lowered Height: 9½" / Raised Height: 27¾"
  • Turntable diameter: 43⁵⁄₈"
  • Spring actuated no power required
  • Includes 3 different colored springs
  • Base Size: 36"W x 45"L
  • Built in fork pockets measure 6³⁄₈" W x 1¾" H on 29³⁄₈" Centers
  • Turntable is low friction with full 360°rotation
  • Weight: 420 LBS





Presto P3-SPRING Pallet Positioner Load:
SKUCapacity/Desc.Lowered/Raised HeightWeightPriceQty
P3-SPRING400 LBS to 4500 LBS9-1/2" / 27-3/4"420 LBSRequest Quote in Cart
Options:
SKUCapacity/Desc.WeightPriceQty
P3-SPRING-BELBellows Guard - Keeps Debris From Collecting Under Unit30 LBSRequest Quote in Cart
P3-SPRING-CVRRotator Ring Disc Cover - Keeps Small Parts from Dropping Into Carousel25 LBSRequest Quote in Cart
P3-SPRING-STSolid Steel Turntable: Rectangular or Square - For Small or Odd Shaped Pallets100 LBSRequest Quote in Cart
P3-SPRING-RLRing Lock - Lock Carousel From Turning5 LBSRequest Quote in Cart
