Morse 85i-SS Stainless Steel Below Hook Drum Lifter

Morse 85i-SS Stainless Steel Overhead Drum Lifter
Plastic & Fiber Drum Adaptors 4560BSS-P & 4556SS-P
6075SSi-P - Optional Cinch Chain and Ratchet
Click to see More Photos
Back to List
$1,138.00
SKU: 85i-SS



Scroll Down for More Info

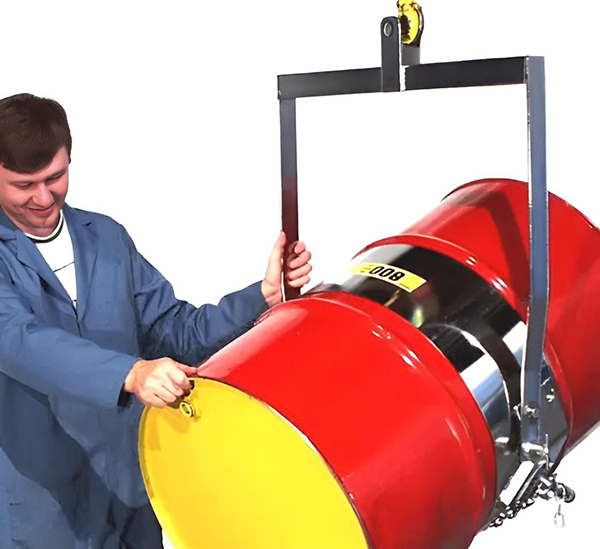

The Morse 85i-SS Stainless Steel Below Hook Drum Lifter is designed to lift, rotate, and provide a controlled drum dispensing solution for a standard steel 55-gallon drum with a 22.5" diameter between the ribs. This overhead drum lifter is perfect for hoisting up a drum (with or without an installed faucet) to an ergonomic position and then manually tilting the drum up to 360 degrees in either direction to dispense. The Morse 85i-SS below hook drum lifter can be locked in the vertical position for transporting a drum or locked in the horizontal position to pour the drum. The maximum capacity is 800 LBS for a full drum and 500 LBS for a half full drum. Great for use as a crane drum lifter. Made of 304 Stainless Steel, ideal for use in cleanrooms or in the food or pharmaceutical environments.

The Morse 85i-SS Stainless Steel Below Hook Drum Lifter has an estimated lead time to leave the warehouse of 20 to 25 business days.







Specifications:

  • For use with 55 gallon steel drums that have a 22.5" diameter (measured between the ribs). Adaptors available for smaller diameter, plastic, & fiber drums.
  • Full Drum Capacity: 800 LBS
  • Half Full Drum Capacity: 500 LBS. A partially full drum is an unbalanced and shifting load which reduces capacity.
  • Manual grasp and tilt operation
  • Can raise and invert a drum with a drum faucet in place
  • Load tested at the factory at 125% of rated capacity as per American National Standard ANSI/ASME B30.20
  • Comes with a Load Test Certificate
  • Weight 50 LBS
  • All 304 Stainless Steel welded construction in accordance with ANSI/AWS D14.1 and ASME BTH-1 for years of dependable service



Options:

  • Stainless steel top rim clamp assembly to handle 55 gallon rimmed plastic, fiber, or steel drum. Bolts on to prevent drum from slipping through - Model 4560BSS-P
  • Stainless steel bracket assembly to handle rimless plastic drums that are 31"-39" tall. Also recommend for use with fiber drums for a more secure grip. Bracket at top and bottom prevents drum from slipping through - Model 4556SS-P
  • Stainless Steel cinch chain and ratchet (replaces web strap and ratchet). More durable, is washable, and is resistant to many chemicals. The estimated lead time is 3 weeks for this item. - Model 6075SSi-P
  • Stainless steel drum adaptor to handle 19"dia. drums - Model 55/30SS-19
Morse 85i-SS Stainless Steel Below Hook Drum Lifter:
SKUCapacity/Desc.Capacity FullCapacity 1/2 FullWeightPriceQty
85i-SSStainless Steel Below Hook Drum Lifter & Dispenser800 LBS500 LBS50 LBS $1,138.00
Options:
SKUCapacity/Desc.WeightPriceQty
4560BSS-PSS Top Rim Clamp for 55 Gal. Rimmed Plastic & Fiber Drums11 LBS $680.00
4556SS-PSS Bracket Adaptor for 55 Gal. Rimless Plastic & Fiber Drums That Are 31" To 39" Tall20 LBS $549.00
6075SSi-PSS Cinch Chain With Ratchet (Replaces Web Strap With Ratchet). The Estimated Lead Time is 3 Weeks For This Item.1 LBS $264.00
55/30SS-19SS Non-Bracketed Adaptor for 18.5" to 19" Dia. Drum (for handling a typical 30 gal. drum) 24 LBS $333.00
