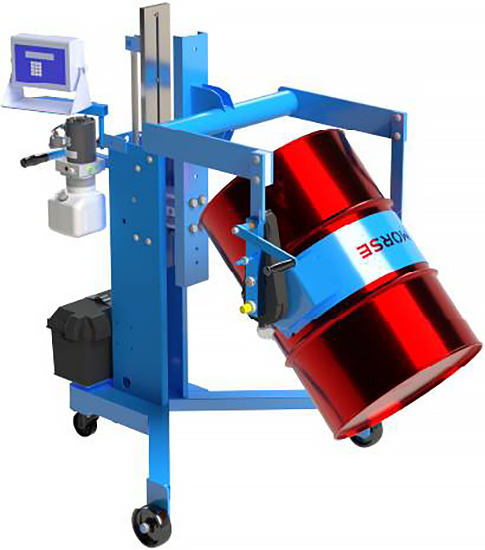

The Morse 825A-N-125 is an electric drum lifter / palletizer / dispenser that includes a high quality scale to weigh the drum at any angle while lifting or dispensing. Comes standard to handle a steel drum that is 22.5” to 23.5” in diameter (adaptors available for other drum sizes, see options below) onto and off of a standard pallet, drum dolly, or spill containment pallet and then pour the drum. A 12v DC powered lift mechanism allows the operator easily to lift a drum weighing up to 600 LBS in the upright position to a maximum of 20” off of the floor and transport it to where it is needed. 12v deep cycle battery and charger included with the unit. The maximum pour height is 25”. The v-shaped base design allows the operator of this Morse drum dispenser to quickly lift and place a drum on the corner of a pallet or other raised location as required. Hand pump operation raises the drum. The Morse 825A-N-125 can straddle a pallet that is up to 41" (104 cm) wide and 7" (18 cm) high (can palletize and depalletize a drum at the corner of a pallet). This industrial duty Morse electric drum lifter features a turning radius of 53” (135 cm) and includes a counter-weight to stabilize the drum truck.
Morse 825A-N-125, 825A-N-124, 825A-N-120 drum lifters / drum dispensers are built to order with an estimated lead time to leave the warehouse of 6 weeks.
Specifications:

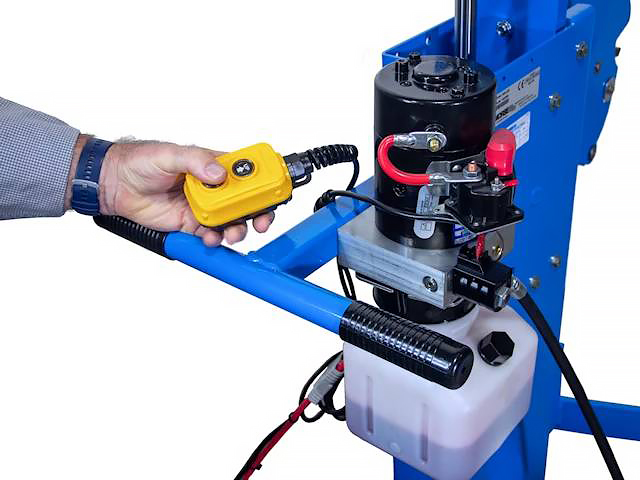

- 12 Volt DC powered lift. Deep cycle lead acid battery and 100/200V 50/60Hz AC charger included. (AC & AIR powered models available - see chart below)
- Geared hand crank manually rotates 360 degrees in both directions to dispense drum. Operator can lock drum in horizontal position to pour and in the vertical position when transporting
- Lift, Transport, Weigh, & Pour a drum weighing up to 600 LBS (272 kg).
- Can weigh the drum while pouring to dispense a specific amount of the drums contents

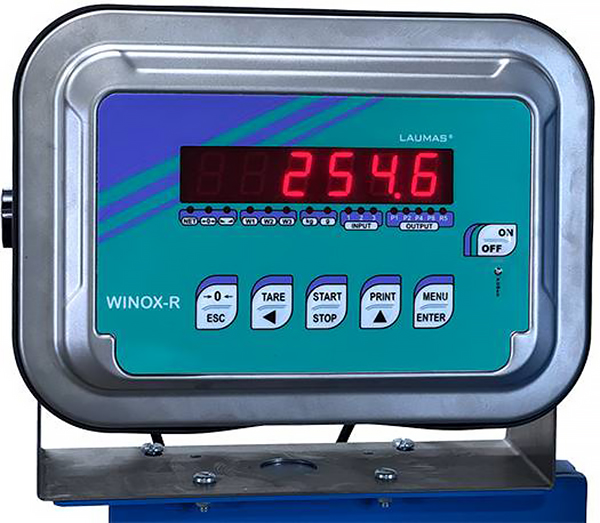

- Digital scale head with 2 load cells accurately weight the drum at any tilt angle. Display weight is 0.1 LB and accuracy is +- 0.2%. Scale has no data storage capacity.
- For use with 22" to 23.5" (57.2 cm to 59.7 cm) diameter 55 gal. steel drums (adaptors available for small diameter, plastic, & fiber drums)
- Palletize or Depalletize a drum at the corner of a pallet
- Max. Dispensing Height: 25" (63.5 cm)
- Can lift a drum onto and off of a pallet or spill containment container that is up to 16" (40.6 cm) tall
- Can straddle a pallet that is up to 41" (104 cm) wide for easy palletizing/depalletizing of drum
- Counterweight for improved stability
- Cinch chain includes flexible chain cover for drum sidewall protection
- All steel welded construction for years of dependable service
Options:

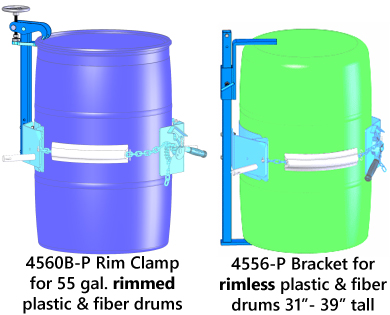

- Top rim clamp assembly to handle 30-55 gallon rimmed plastic, fiber, or steel drum. Bolts on to MORCINCH drum holder to prevent drum from slipping through - Model 4560B-P
- Bracket assembly to handle rimless plastic drums that are 31"-39" tall. Also can be used with fiber and steel drums (or any rimmed drum) for a more secure grip. Bracket at top and bottom prevents drum from slipping through. Requires lifting or tilting drum to get drum onto bottom foot - Model 4556-P
- Tilt Brake To Hold Tilt Angle of Drum - Factory Installed - Model 3900i-P

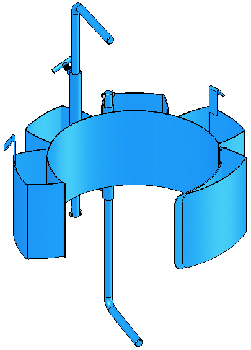

- Drum adaptors with integrated hold-down brackets to handle 14" dia. to 19"dia. drums - Models 55/30-14.5, 55/30-16, 55/30-17.5, 55/30-19, 55/30-20.5
