Morse 520SS-115 Powered Stainless Steel Drum Dumper

Morse 520SS Stainless Steel Drum Dumper
Small Diameter Drum Adaptors Bracketed and Non-Bracketed
Plastic & Fiber Drum Adaptors 4560BSS-P & 4556SS-P
Click to see More Photos
Back to List
SKU: 520SS-115


Scroll Down for More Info
Additional Info

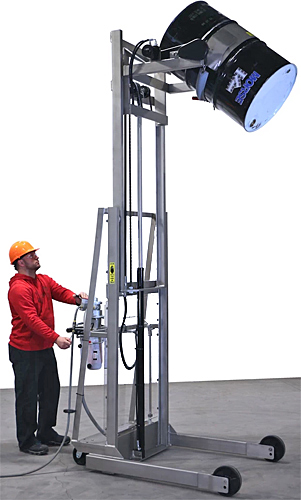

The Morse 520SS-115 Stainless Steel Drum Pourer is designed for a single operator to lift and pour a full drum weighing 800 LBS or a half full drum weighing 500 LBS. Made of 304 stainless steel for use in clean and washdown applications including the food and pharmaceutical industries. The operator controls the tilt of 360 degrees in either direction and the pour height of up to 106”. 12v DC powered lift and tilt makes dispensing drums a breeze (115v AC and factory air powered models available- see chart below). A manual release valve lowers the drum on this stainless steel drum dumper. The drum cradle automatically cinches 22" to 23.5" diameter drums and the cinch chain includes a flexible chain cover to protect the sidewall of the drum. The Morse 520SS stainless steel drum dispenser is designed for pouring a drum with a drum faucet or drum cone in place.


The Morse 520SS-115 Stainless Steel Drum Pourer is built to order with an estimated lead time to leave the warehouse of 14 weeks.





  • Made of 304 Stainless Steel for clean and wash down applications.
  • Max. Dump Height: 106"
  • For use with 22" to 23.5" diameter 55 gal. steel drums (adaptors available for small diameter, plastic, & fiber drums)
  • 360° tilt control in both directions
  • Full Drum Capacity: 800 LBS
  • Half Full Drum Capacity: 500 LBS. A partially full drum is an unbalanced and shifting load which reduces capacity.
  • 12v DC (includes 12v battery and charger), 115V AC, and Air Powered Lift & Tilt models available
  • Cinch chain includes flexible chain cover for drum sidewall protection
  • Vertical lifting track keeps drum reach constant through the full lift range
  • All welded construction for years of dependable service



  • Drum adaptors with integrated hold-down brackets to handle 14" dia. to 20.5" dia. drums - Models 55/30SS-14.5, 55/30SS-16, 55/30SS-17.5, 55/30SS-19 (non-bracketed), 55/30SS-20.5 (non-bracketed)
  • Top rim clamp assembly to handle 55 gallon rimmed plastic, fiber, or steel drum. Bolts on to MORCINCH drum holder to prevent drum from slipping through - Model 4560BSS-P
  • Bracket assembly to handle rimless plastic drums that are 31"-39" tall. Also recommend for use with fiber drums for a more secure grip. Bracket at top and bottom prevents drum from slipping through - Model 4556SS-P




Need a Drum Cone, Drum Faucet, or Drum Pump?
Click on the links below to view selection.

Drum Cones,  Drum Faucets,  Drum Pumps

Morse Portable Drum Tilter:
SKUCapacity/Desc.For Use With Drum Dia.WeightPriceQty
520SS-115SS 12V DC Powered Lift & Tilt Drum Dispenser22" - 23.5"858 LBS $21,333.00
520SS-110SS 115V AC Powered Lift & Tilt Drum Dispenser22" - 23.5"858 LBS $21,333.00
520SS-114SS Air Powered Lift & Tilt Drum Dispenser22" - 23.5"858 LBS $21,494.00
55/30SS-20.5SS Non-Bracketed Adaptor for 20" to 20.5" Dia. Drum20 LBS $333.00
55/30SS-19SS Non-Bracketed Adaptor for 18.5" to 19" Dia. Drum (for handling a typical 30 gal. drum) 24 LBS $333.00
55/30SS-17.5SS Bracketed Adaptor for 17.0" to 17.5" Dia. Drum35 LBS $507.00
55/30SS-16SS Bracketed Adaptor for 15.5" to 16" Dia. Drum35 LBS $507.00
55/30SS-14.5SS Bracketed Adaptor for 14" to 14.5" Dia. Drum36 LBS $507.00
4556SS-PSS Bracket Adaptor for 55 Gal. Rimless Plastic & Fiber Drums That Are 31"-39" Tall20 LBS $549.00
4560BSS-PSS Top Rim Clamp for 55 Gal. Rimmed Plastic & Fiber Drums11 LBS $680.00
