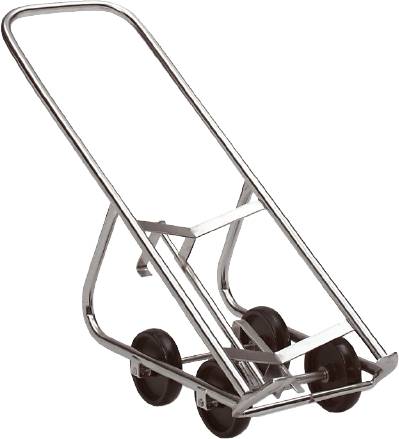

The Morse 160-SS 4 Wheel Drum Truck is constructed of 304 Stainless Steel making it ideal for use in wash down / clean applications and for use in the food and pharmaceutical industries. Designed for loading and unloading heavy drums from pallets, dispensing drums, and transporting drums to where they are needed. This innovative design provides safety, ease of use, and versatility. Four wheel stability makes maneuvering easy. To use simply engage the upper drum rim and pull the truck’s handle to tilt the drum toward the operator (there is no need to tip the drum away from the operator to slide a base plate underneath). Two lower grab bars fit under the curvature of the drum for bottom support. The operator may then easily load the drum on and off of pallets or position the drum for dispensing. When dispensing a drum, the frame and extendable support prop stabilize the truck in horizontal position. The Morse 160-SS stainless steel drum truck stands upright providing space saving storage when not in use.
The Morse 160-SS stainless steel Drum truck is built to order with a normal lead time to leave the warehouse of 20 to 25 business days.
For use with the following drum types:
- Drums that are 14" to 28" (36 to 71 cm) in diameter
- Drums that are 31" to 41" (79 to 104 cm) tall
- 55-gallon (208 liter) steel drum
- 30-gallon (114 liter) steel drum
- 85-gallon (322 liter) salvage or "overpack" drum
- Rimmed plastic drums
- Fiber drums with sufficient rim recess on top for hook engagement
Features:
- Made of 304 Stainless Steel with electro-polished finish for food, pharmaceutical, and wash down applications
- Dispenses drums, transports drums, & can load drums onto and from pallets
- Capacity: 1,000 LBS(454 kg)
- Drum truck stands on its own with 4 wheels supporting entire weight of drum
- Extendable support prop stabilizes drum truck in dispensing position and enables upright storage
- Chime hook engages upper drum rim to assist in loading upright drum onto drum truck
- Maneuvers easily on (4) 8" polyolefin roller bearing wheels
- Forged steel toes for easy loading
- U-shaped handle protects operator's hand
- All Morse 4 Wheel Drum Trucks ship boxed with minor assembly required
Optional Strap Kit 5058-P on any Morse 4-Wheel Drum Truck to handle:
- Rimless drums
- Drums shorter than 31" (78.7 cm) tall
- Designed to work with up to a 24" (61 cm) diameter drum (minimum drum diameter is 14")
