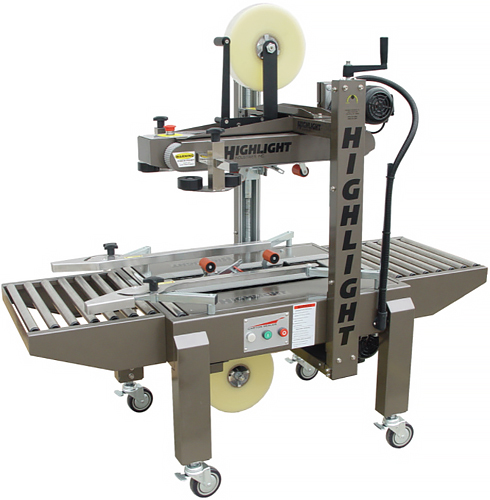

Highlight Magnum 1300TB-U Case Sealer

Highlight Magnum 1300TB-U Case Sealer
Click to see More Photos
Back to List
SKU: 1300TB-U


Scroll Down for More Info
Additional Info

The Highlight Magnum 1300TB-U Case Sealer is a professional top and bottom belt drive case sealer which can seal up to 30 boxes per minute. With two 2" tape heads, this case sealer applies packaging tape to both the top and bottom of boxes at the same time, and is best for boxes which are taller in height & shorter in length. A crank handle and two locking knobs quickly and easily adjust the size, enabling this packaging tape machine to handle boxes measuring from 6" to 20"W, 5" to 20"H and from 5" to unlimited length. The 1300TB-U features legs which are adjustable from 22" to 32" and have locking casters for safety. 16" long entry and exit rollers with precision bearings help boxes move smoothly along the case sealing machine. Belt speed is max. 75 feet per minute.

Please contact HOF for an estimated lead time for the Highlight Magnum 1300TB-U Case Sealer.



  • Top and Bottom Belt Drive
  • Operates on 110V, 60Hz, 8Amp
  • Case size capacity: 6" to 20"W, 5" to 20"H, 5" to unlimited L
  • Belt speed: up to 75'/min
  • 16"L entry & exit roller conveyors
  • Seals up to 30 cases per minute
  • Legs adjustable from 22" to 32"
  • Locking casters
  • Crank handles & locking knobs adjust height and width
  • Emergency stop button
  • Overall Size: 30"W x 65"L x 58"H
  • Weight: 375 LBS



  • 3" Tape Upgrade - replaces 2" tape head with 3" tape head to accept up to 3"W rolls of carton sealing tape. When purchasing this option, the minimum box width is 7" - Model 3TAPE
  • Heavy Duty Flexible Conveyor - 18"W accumulation conveyor, adjusts from 23" to 31"H. Extends from 48" to 160"L and bends around corners. Includes locking casters - Model FLEXCONV
  • Heavy Duty Box Stand - Holds up to 50 case blanks. Height adjustable - Model BOXSTD
  • UL Component Upgrade - All electrical controls are upgraded and approved to UL requirements - Model ULUPG




Highlight Magnum 1300TB-U Case Sealer:
1300TB-USeals up to 30 Boxes per Minute375 LBS $4,495.00
3TAPE3" Tape Head Upgrade20 LBS $650.00
FLEXCONVHeavy Duty Flexible Conveyor200 LBS $1,150.00
BOXSTDHeavy Duty Box Stand100 LBS $750.00
ULUPGUL Component Upgrade1 LBS $550.00
