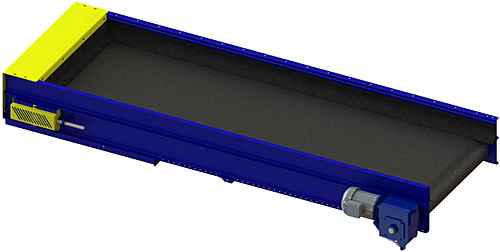

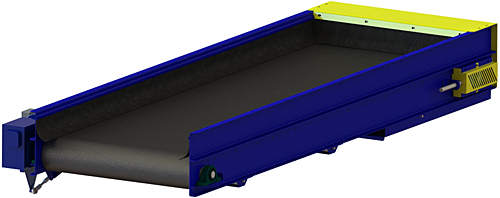

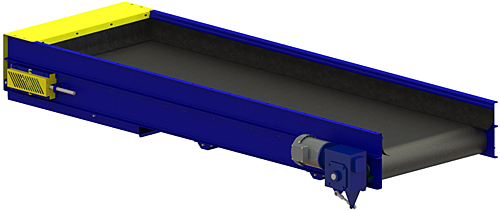

Endura-Veyor MD660 Medium Duty Conveyors are designed to convey items and materials weighing from 200 to 965 LBS depending on model. These high quality slider bed conveyors are ideal for use in production lines and may be ordered in standard lengths of 5' to 50' long, non-standard belt lengths available. 18" conveyors can be used in a variety of applications including stamping press operations and plastic injection molding. Slider bed conveyors come standard with a belt speed of 60 fpm. 30, 40, 50, 75, and 100 fpm belt speeds are available. The industrial quality 1 HP drive motor can be ordered to operate on 120V 1 PH, 208V 3 PH, 230V 3 PH, & 460V 3PH voltages. Frame is made of 10-gauge formed steel and features a welded in bed for years of reliable service. Stainless steel frames available. Endura-Veyor 18" belt conveyors may be ordered in a variety of stock colors including safety blue, profile grey, vista green, safety orange, and safety yellow. Custom colors available.
Custom belt lengths, belt speeds of 30 fpm to 100 fpm, custom colors, and stainless steel frames available - Please contact HOF Equipment Company for a quote.
Endura-Veyor 18" belt conveyors are built to order with an estimated lead time to leave the warehouse of 12 to 16 weeks.
Controller and side guides are not included with conveyor. To Order Using The Charts Below: 1) Select a conveyor 2) Select a voltage 3) Select desired options (stop/start controller, fixed/variable speed controller, cord/plug, and side guides).
Specifications:
- 18" wide black PVC belt (effective width)
- 200 LB To 965 live load capacity depending on model
- Belt Lengths: 5', 10', 15', 20', 30', 40' or 50'
- Overall width: 25¼" to 32¾" at the drive area
- Frame profile: 15â…ž" high / 19-5/16" at drive (includes a 6" high side skirt)
- Belt Speed is 60 fpm standard, other speeds also available: 30 fpm, 40 fpm, 50 fpm, 75 fpm, 100 fpm, 120 fpm, 150 fpm & 200 fpm - please contact HOF for pricing
- 1 HP drive motor available in these voltages: 120V 1 PH, 208V 3 PH, 230V 3 PH, and 460V 3PH - select in chart below
- Assembled and tested prior to shipment
Options:
- Start/Stop Controller (fixed speed) - Model MD660-EV-SSC
- Variable Speed Controller 4:1 Ratio - Model MD660-EV-VSC
- 10' Cord & Wall Plug for VSC or SSC - Model MD660-EV-PLUG
- Side Guides to prevent product and debris from getting under the belt - Models with suffix -SG
