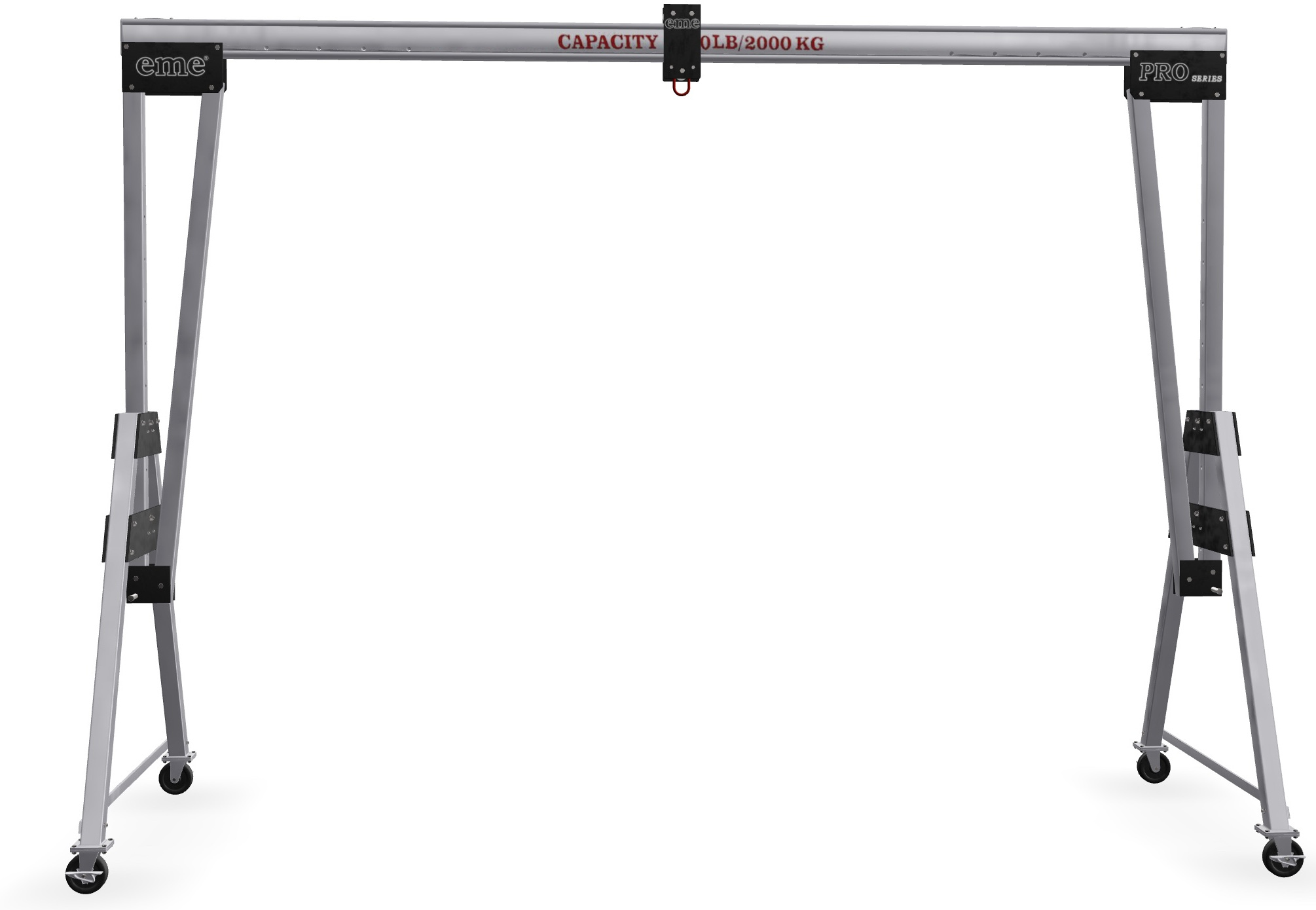

eme 4400M Aluminum Gantry Cranes are a great choice for lifting and transporting loads weighing up to 4,400 LBS. Workers can manually roll these cranes while loaded (moving with a powered device is not authorized). The under-beam height adjustment range is 66” to 90”. These 2 Ton Aluminum Gantry Cranes have several 8 inch beam adjustments (dependent on beam length), allowing the user to narrow the clear span in limited space environments. The legs can be positioned at different heights to accommodate different floor levels, as long as the top beam remains level. Available beam lengths are 8’, 10’ and 15’ – custom lengths up to 30’ are available. Easy grip handles allow the user to manually adjust the gantry crane height. The eme 4400M comes with high grade 4 position phenolic casters that can be locked for swivel and roll independently. Cranes are all aluminum construction and come standard with a surround beam trolley with lifting shackle - hoist sold separately.
eme 4400M 2 Ton Aluminum Gantry Cranes have an estimated lead time to leave the warehouse of 3 to 5 business days.
Specifications:
- Surround Beam Trolley included with crane / hoist sold separately
- Bolted design negates the risk of hidden cracked welds
- Capacity: 4,400 LBS - Crane may be rolled while loaded
- Beam Length: 8’, 10’, or 15’ - custom beam lengths up to 30' available
- Under Beam Usable Height from ground to lifting shackle: Adjustable from 5'6” to 7'6" (66" to 90") in 6" increments
- Rolls on high grade phenolic 4 position casters that can be locked independently for swivel and roll
- Grade L9 chromate plated-fasteners
- Grip handles for height adjustment
- Top of beam aluminum handles make it simple to carry the beam
- Crane legs can be set at different heights to accommodate varying floor levels (as long as the top beam remains level)
- All aluminum construction
- Each eme Aluminum Gantry Crane ships with extensive documentation
- Signed Certificate of Test, the crane is proof load tested to 125% of rated capacity prior to shipment
- Engineers Stamped Drawing for the crane design
- eme aluminum gantry cranes conform with ASME standard B30.17. The beams conform with code specification ASME BTH-1 Design Category A.
- 10 year warranty on design, 2 year on casters
- See all crane measurements on drawing in ADDITIONAL INFO above ↑
Options:
- Additional trolley, 2 roller - Model 4400BT-2R
- Pneumatic Wheels - Model PNEUMATIC-4400
- Height Adjustment Kit - come alongs with chains for easier height adjustment - Model HAK
- Reusable Steel Pallet - Model STEELPALLET
- Custom beam length up to 30' - Contact us for a quote
Hoist sold separately. Click link to see our selection of Hoists
Crane should be inspected frequently to insure safe operation. Testing and inspection of the crane is the responsibility of the end user.
