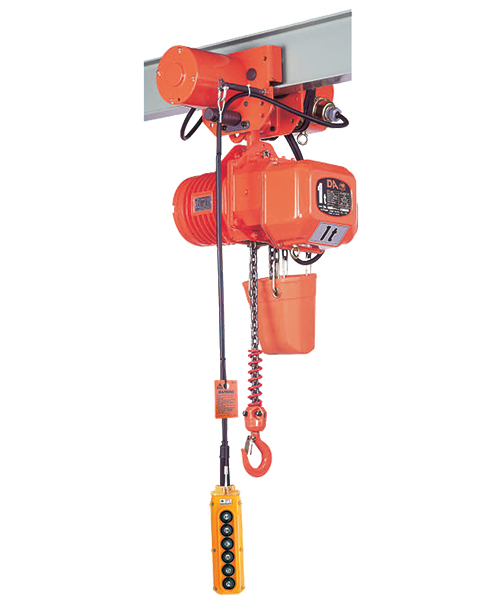

The Elephant DAM-7.5 electric chain hoist with electric trolley is a convenient, all-in-one solution for your lifting needs, comprising a high-quality electric hoist and a motorized trolley, complete with a pivoting adaptor to connect the two. The electric chain hoist is a Japanese made, superior quality industrial hoist with an H3 duty rating, 15,000 LB capacity, and 10’, 15’ or 20’ of lift (custom lift heights also available). IP65 / NEMA 4 24v 2 button hand pendant control hangs approximately 2’ lower than rated lift height. Single speed 460v 3-phase motors on both hoist and trolley are insulated for heat resistance and damage mitigation, and are designed for continuous operation for long periods of time with frequent starts within an hour cycle. (230v 3PH available as special order with extended lead time.) Hoist features solid steel sides and a sealed body for quiet operation and protection from dust. The hoist motor frame is constructed with high quality aluminum cooling fins, which help keep the temperature down inside the motor. Simple plug in type wiring makes attaching the hand pendant control and the power cord quick and easy. The pendant control comes standard with an emergency stop button. In the case of power loss, a double brake system made up of a mechanical brake and an electro-magnetic DC brake will engage to hold the load in place. The electric chain hoist features a fixed top hook / lug mount pivoting adaptor to the motorized trolley, and has a 360° swiveling bottom hook with safety latch that will slowly open to indicate capacity overload. The Elephant DAM-7.5 electric hoist with trolley is load tested to 125% of the rated capacity.
- Made in Japan of the highest quality parts
- H3 motor duty rating, see duty rating descriptions in ADDITIONAL INFO above ↑
- Capacity: 15,000 LBS
- Lift Heights: 10’, 15’ or 20’ (custom heights available – contact HOF)
- Headroom: 47.4"
- One speed 460v 3 PH motor is insulated for heat resistance (230v 3PH available special order with extended lead time)
- Single speed Trolley
- Trolley Beam Range: 5" to 7" / Trolley Min. Radius: 73.7"
- Lift Speed 7 FPM / Trolley Speed 39 or 78 FPM
- IP65 / NEMA 4 24v hand pendant control (hangs approx. 2’ lower than the hoist’s lift height)
- Features emergency stop button on pendant control
- Equipped with 16'4" power cord length (longer cord lengths available – contact HOF)
- Bottom hook with bearing swivels 360°
- Hook / lug mount pivoting adaptor to Motorized trolley
- Hardened galvanized steel chain with chain bucket
- Double-action limit switch stops hoist operation from becoming over-lifted or over-lowered
- Double brake system: mechanical brake and electro-magnetic DC brake hold the load in place if power is lost
- Indoor and Outdoor use (but should be protected from direct rain or snow) - Ambient Temperature Range: 14°F - 104°F
- Load tested to 125% of the rated capacity
- JIS / ISO M5, FEM 2M, ASME H3, IP54 rated
- Longer load chain - Contact HOF for pricing
- Longer PB control cord - Contact HOF for pricing
