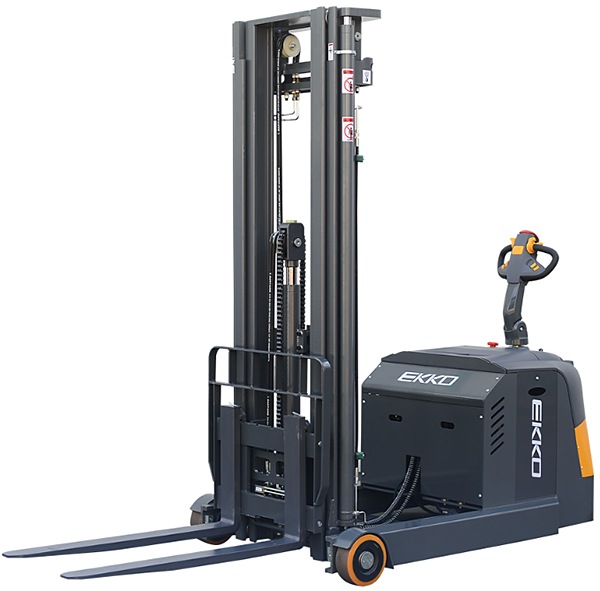

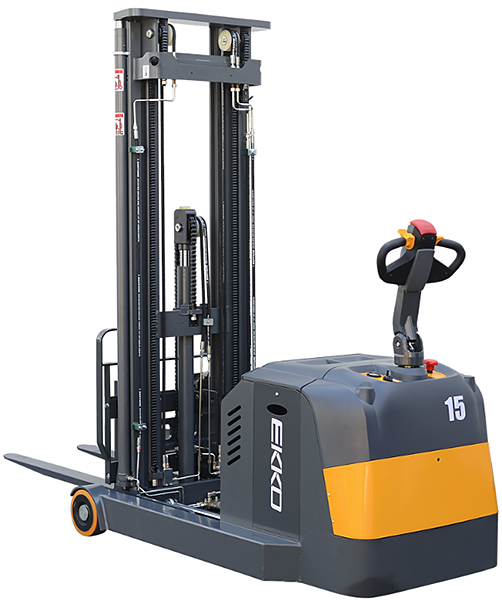

The Ekko EH15TH Moving Mast Walkie Reach Stacker is an extremely versatile electric pallet truck, with a mast which extends upwards and extends forwards together with the forks to reach where standard pallet trucks cannot. With a maximum capacity of 3,300 LBS, this reach truck can handle heavy loads with ease. Its compact size gives it a turning radius of 67". Adjustable width forks and the absence of support legs in front make it ideal for handling a large variety of pallets and skids. The forward extendable fork reach distance of 19.7" provides extra reach for high-up shelves. This walkie reach stacker is designed to transport and stack pallets and skids to a maximum height of 216". Electric reach stacker is powered by a 24V/2.5kw drive motor, 24V/200W EPS steering motor and a 24V/3000W lifting motor, with a lifting speed of 5.1 ips empty and 4 ips loaded. Designed to operate smoothly on concrete floors and is ideal for use in warehouses, loading docks, and store floors. This walkie reach stacker comes standard with an emergency reverse belly switch that when activated causes the pallet stacker to instantly reverse direction. The Ekko EH15TH reach pallet stacker features a heavy duty steel chassis with I-beam telescoping mast for years of service.
SPECIAL ORDER ITEM - For current pricing, shipping cost, and lead time please add the Ekko EK15TH Walkie Reach Stacker to the cart and request a quote.
Specifications:
- Max. Capacity At 24" Load Center: 3,300 LBS
- Powered extendable mast with forks reach an additional 19.7" horizontally
- 216" maximum lift height
- Mast height: 97.3" / max mast height 256"
- Max. extended length: 111.6"
- 2° tilt down, 5° tilt up
- Turning radius: 67"
- 24V 2500 Watt AC drive motor propels unit at 3.5 mph loaded and 3.7 mph unloaded
- 24V 3000 Watt hydraulic lift motor raises loads at 4 ips loaded and 5.1 ips unloaded
- 24V 200 Watt Electronic Power Steering
- 24V Curtis Controller
- Electro-magnetic braking for secure stopping, electronic neural braking for control
- 24V 270 Ah, 24-Volt batteries with external direct connect 110A 110VAC plugin automatic 24V/40-50A charger

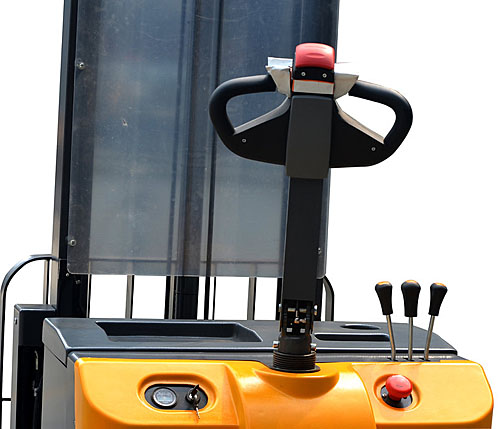

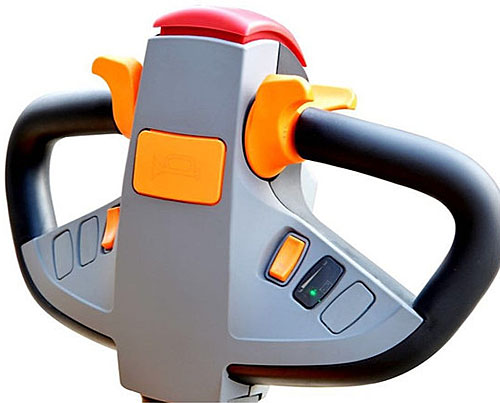

- Ergonomic handle features tilt lifting, lowering, Electric power steering and horn
- Overall fork width: adjusts from 8.7"W O.D. to 28"W O.D.
- Individual forks are 4"W x 45.2"L
- Belly switch with emergency reverse function
- Electromagnetic disc brake with auto dead-man feature activates upon handle release
- Stacker rolls smoothly on polyurethane cushion steer & load wheels
- Plastic protective mast guard
- Not recommended for use on sloped surfaces
- Weight: 4,915 LBS
