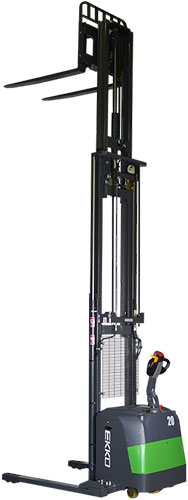

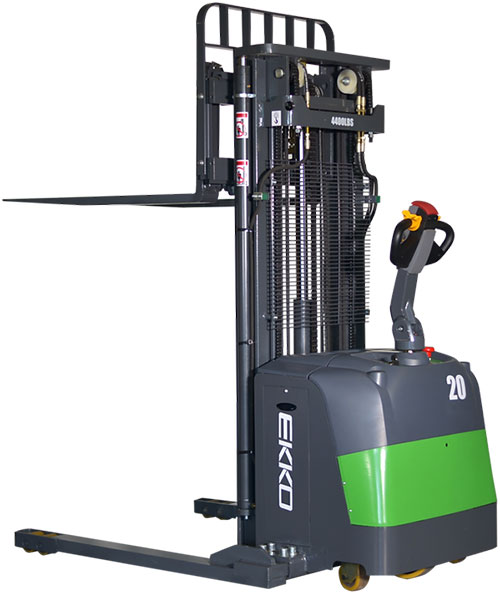

The Ekko EB20CS-216Li electric pallet stacker with side shift is a lithium-ion battery powered drive and lift electric pallet stacker that features side shifting forks, adjustable width forks, and adjustable width legs allowing it to handle virtually any type of pallet or skid. This Ekko stacker is ideal for moving and stacking pallets and skids. A powerful 24v 150Ah Li-ion battery and a 24v/50 AMP charger are included with the stacker. The metal mesh mast provides the user with a clear forward view. Pallet Stacker features a 4,400 lb capacity at a 20” load center (see capacities by height in specifications below), 189" max. lift height, 65" turning radius, and electric power steering. The ergonomic offset handle on this Ekko walkie stacker includes the following controls: forward/reverse, lift/lower, side shift, auto-reverse safety belly button switch, and horn. A 24v AC drive motor propels the stacker. A 24v lift motor raises the forks. The Ekko EB20CS-216Li pallet stacker features all robotically welded steel construction for years of reliable service.
Please contact HOF for a current lead time for the EB20CS-216Li Ekko stacker.
Specifications:
- Side shifting forks
- Max. Capacity At 20" Load Center: 4,400 LBS (capacity derates above 63" and when side shifted)
- 2.6" lowered fork height / 216" max. raised fork height
- 24v 150Ah Li-ion battery with 24v / 50 AMP external direct connect charger are included
- Collapsed Mast height is 92.9" / Fully Extended Mast Height is 245.6"
- Ergonomic handle contains throttle (includes turtle mode), forward/reverse, lift/lower controls, side shift controls, safety reversing belly switch, and horn
- A 1.5 kW drive motor produces infinitely variable speed operation from 0 mph to 2.5 mph empty and 0 mph to 2.2 mph loaded. Travel speed is constant regardless of load.
- Lift speed is 3.6 i.p.s. empty and up to 2.9 i.p.s. loaded
- Lower speed is 2.8 i.p.s. empty and up to 3.3 i.p.s. loaded
- Climbing Capability On Grade: 3% Grade When Loaded / 10% Grade When Empty
- Electric power steering
- 65" turning radius
- Ground clearance is 1.2"
- Curtis instrument controller, battery discharge indicator combination gauge / key switch
- Fork width adjusts from 8.7"W I.D. to 32.1"W I.D.
- Individual forks are 45.3” long x 3.9” wide
- Legs width adjusts from 39.8"W I.D to 55.5"W I.D.
- Electro-magnetic braking for enhanced stopping power / Electronic neutral braking for accurate control
- Service Weight: 3000 LBS
