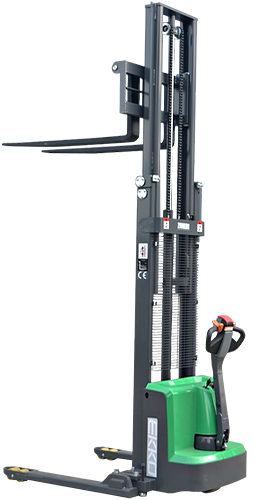

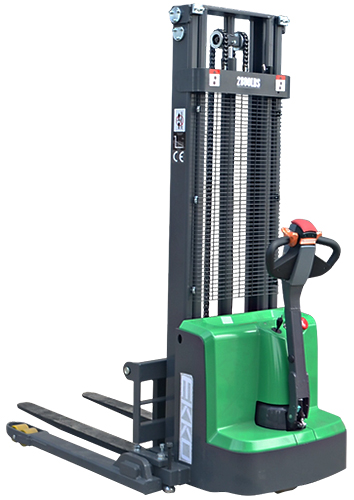

The Ekko EB13ES-LI pallet stacker with side shift is a lithium-ion battery powered drive and lift electric pallet stacker that features side shifting forks, adjustable width forks, and adjustable width legs allowing it to handle virtually any type of pallet or skid. This Ekko stacker is ideal for moving and stacking pallets and skids. A 24v 50Ah Li-ion battery with 110v integral charger come standard with the stacker. The metal mesh mast provides the user with a clear forward view. Pallet Stacker features a 2,640 LB capacity at a 24” load center up to 98", 119" lift max. height, and a tight 52.6" turning radius for maneuverability in tight aisles. The ergonomic offset handle includes speed controls, lift/lower, side shift, turtle mode switch for precise positioning, auto-reverse safety belly button switch, and horn. A .75kW drive motor propels the stacker at 3.0 mph loaded and 3.3 mph empty. A 2.2kW lift motor raises loads at 3.6” per second loaded and 5.4” per second unloaded. The EB13ES-LI Ekko walkie stacker features all robotically welded steel construction for years of reliable service.
The EB13ES-LI Ekko pallet stacker with side shift normally leaves the warehouse in 3 to 5 business days.
Specifications:
- Side shifting forks
- Capacity At 24" Load Center (48"L pallet with evenly distributed load): 2,640 LBS 2.35" to 98" | 1,980 LBS 98" to 119" (side shifting the forks reduces the capacity by 480 LBS at all heights)
- 24v 50Ah Li-ion battery with 110v integral charger are included
- 2.35" lowered fork height / 119" max. raised fork height
- Collapsed Mast height is 82" / Fully Extended Mast Height is 135"
- Ergonomic handle contains throttle, turtle mode switch, lift/lower controls, side shift controls, safety reversing belly switch, and horn
- Infinitely variable speed operation from 0 mph to 3.3 mph empty and 0 mph to 3.0 mph loaded
- Turtle mode switch to slow down the stacker's speed for precise load positioning
- 52.6" turning radius for use in tight areas
- Curtis instrument controller, battery discharge indicator combination gauge
- Fork width adjusts from 8.3” O.D. to 33.5” O.D.
- Individual forks are 45” long x 3.9” wide x 1.38” thick
- Legs width adjusts from 45.7"W O.D to 59.1"W O.D.
- Lift speed is 5.4 i.p.s. empty and up to 3.6 i.p.s. loaded
- Lower speed is 3.8 i.p.s. empty and up to 4.4 i.p.s. loaded
- Electro-magnetic braking for enhanced stopping power / Electronic neutral braking for accurate control
- Service Weight: 1,495 LBS
- Warranty: 1 year limited
