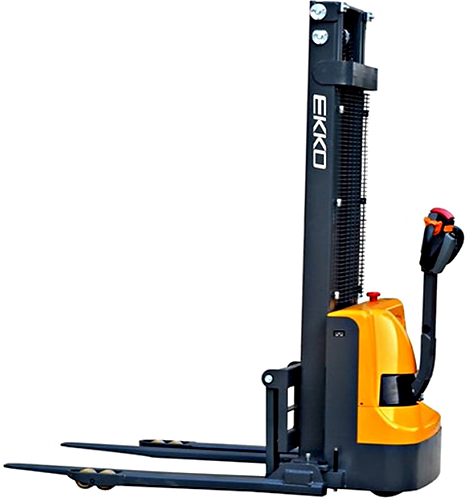

The Ekko EB12E pallet stacker is a battery powered drive and lift electric pallet stacker that features adjustable width forks and adjustable width legs allowing it to handle virtually any type of pallet or skid. This Ekko stacker is ideal for moving and stacking pallets and skids. Two 12v 100Ah batteries with 110v integral charger come standard with the stacker. The metal mesh mast provides the user with a clear forward view. Pallet Stacker capacity at a 24" load center is 2,640 LBS 2.95" to 63" and 1,664 LBS 63" to 119". The turning radius is 52.6" allowing for better maneuverability in tight aisles. The ergonomic offset handle includes speed, lift/lower, auto-reverse safety belly button switch, and horn. A .75kW drive motor propels the stacker at 3.0 mph loaded and 3.3 mph empty. A 2.2kW lift motor raises loads at 3.6” per second loaded and 5.4” per second unloaded. The EB12E Ekko walkie stacker features all robotically welded steel construction and industrial grade components for years of reliable service.
The EB12E Ekko pallet stacker normally leaves the warehouse in 3 to 5 business days.
Specifications:
- Capacity At 24" Load Center (48"L pallet with evenly distributed load): 2.95" to 63" 2,640 LBS | 63" to 119" 1,664 LBS
- 2.95" lowered fork height / 119" max. raised fork height
- (2) 12v 100Ah deep cycle, maintenance free batteries with 110v (24v 15A) internal charger are included
- Collapsed Mast height is 82" / Fully Extended Mast Height is 135"
- The recommended minimum isle width for right angle stacking is 75”

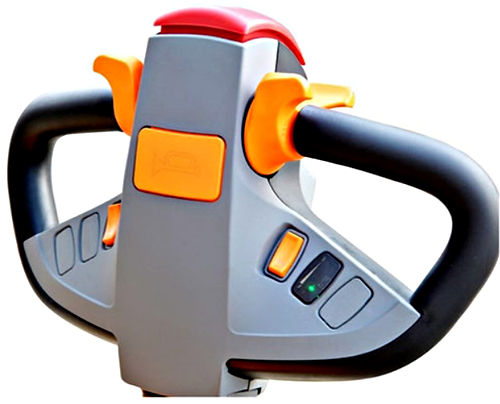

- Ergonomic handle contains throttle, forward/reverse controls, lift/lower controls, safety reversing belly switch, and horn
- 52.6" turning radius for use in tight areas
- Ground clearance is .95"
- Curtis instrument controller, battery discharge indicator combination gauge

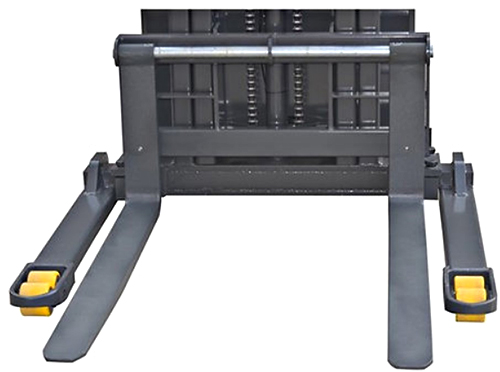

- Fork width adjusts from 8.3” O.D. to 33.5” O.D.
- Individual forks are 45” long x 3.9” wide x 1.38” thick
- Legs width adjusts from 45.7"W O.D to 59.1"W O.D.
- Infinitely variable speed operation from 0 mph to 3.3 mph empty and 0 mph to 3.0 mph loaded. Curtis controller maintains a constant travel speed regardless of load.
- Lift speed is 5.4 i.p.s. empty and up to 3.6 i.p.s. loaded
- Lower speed is 3.8 i.p.s. empty and up to 4.4 i.p.s. loaded
- Electro-magnetic braking for enhanced stopping power / Electronic neutral braking for accurate control

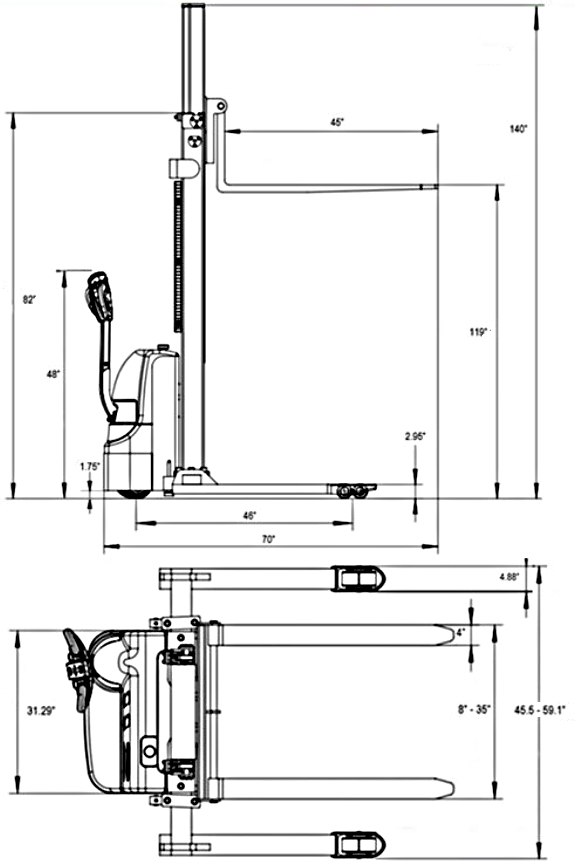

- Overall Size: 70"L x 45.5"W x 82"H (fully collapsed)
- Service Weight: 1,420 LBS
- Warranty: 1 year limited
