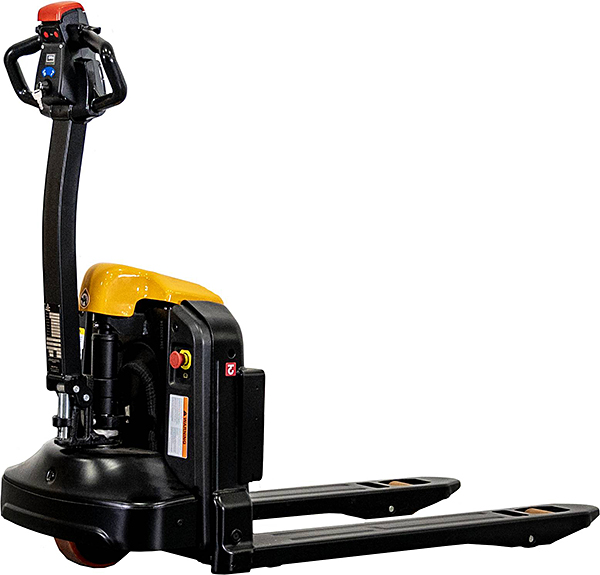

Big Joe LPT40 Electric Pallet Jack

Big Joe LPT40 Electric Pallet Jack

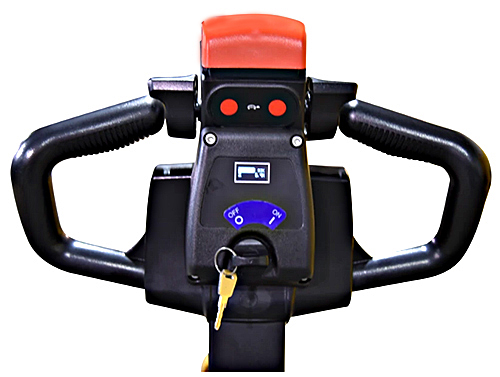

Big Joe LPT40 Handle
Click to see More Photos
Back to List
SKU: LPT40-2748


Scroll Down for More Info

The Big Joe LPT40 Electric Pallet Jack features a new and innovative quick exchange lithium ion battery. The small, lightweight battery can charge in as little as 2 hours (estimated) and provide up to 3.5 hours of continuous run time (estimated). Purchasing extra batteries makes running out of battery a non-issue. To exchange, simply grab the battery handle and pull the dead battery out of the jack and then slide a charged replacement in. This heavy-duty electric pallet jack has powered drive & powered lift and can handle loads weighing up to 4,000 LBS. Speed is variable from 0 to 3.1 mph when fully loaded. The ergonomic handle includes a belly reversing switch, battery charge indicator and horn. The Big Joe LPT40 electric pallet jack comes standard with an efficient permanent magnet DC drive motor designed to provide years of reliable service.

Optional stability casters model SC-2745 are strongly recommended (see options below). Unit can tilt with a heavy load when cornering, stability casters will solve this issue.


The Big Joe LPT40-2748 has an estimated lead time to leave the warehouse of 5 business days. For other models please check with HOF Equipment Company for a lead time estimate.

Li-ion batteries must be inspected daily for damage such as cracked, punctured, dented, discolored, or deformed outer case and the presence of electrolyte around the bottom of the battery. See attached Big Joe Li-ion Bulletin and operation manual attached above.



  • 4,000 LB capacity @ 24" load center
  • Estimate 3.0 hour continuous run time / Estimated battery charge time 1.5 hours
  • (1) 48V 30AH Quick Exchange Lithium Ion battery, battery charge indicator, & 110V external battery charger
  • Lowered Height 3.2" / Raised Height 7.75"
  • Travel speed is variable from 0 to 3.4 mph unloaded, and from 0 to 3.1 mph fully loaded
  • Ergonomic handle houses travel, lift, and lower controls that are accessible without having to lift hand from handle
  • Safety belly reversing switch, thumb control, and horn
  • Dual butterfly infinitely variable travel controls designed to allow easy operation with either hand
  • Removable key fob and EPD to prevent unauthorized use
  • Overall Fork Size: 27"W O.D. x 46"L, 27"W O.D. x 33.5"L, 21.3"W x 46"L, 21.3"W x
  • Individual Forks Size: 6"W X 46"L
  • 24V electric motor with Curtis transistor controller
  • Hydraulic system features a permanent magnet pump motor and chrome plated lift cylinder
  • Rolls smoothly on 8.3" x 2.8" polyurethane drive tire and (2) 2.9" x 3.5" front load wheels
  • Weight: 550 LBS
  • Warranty: 2 years or 1000 hrs on frame, transmission, & weldments. 1 year on batteries. All other parts excluding wearables are 6 months or 1000 hrs parts and labor.



Big Joe LPT40 Electric Pallet Jack:
SKUCapacity/Desc.Fork SizeWeightPriceQty
LPT40-27484000 LBS27"W x 46"L390 LBS $3,672.00
LPT40-2248 4000 LBS 21.3"W x 46"L390 LBS $4,112.00
LPT40-27364000 LBS 27"W x 33.5"L375 LBS $3,978.00
LPT40-22364000 LBS 21.3"W x 33.5"L390 LBS $4,112.00
Options - May Extend Lead Time:
SC-2745Stability Casters For 27"W Fork Models. Set of 2 (mounted under truck body)15 LBS $220.00
LPTHD-BATExtra 48V 30AH Lithium Ion Battery16 LBS $1,000.00
LPTHD-CHGExtra 110V External Charger10 LBS $950.00
LB48Load Backrest 48" Tall (SPECIAL ORDER - Extra lead time ask HOF for lead time estimate)30 LBS $251.00
