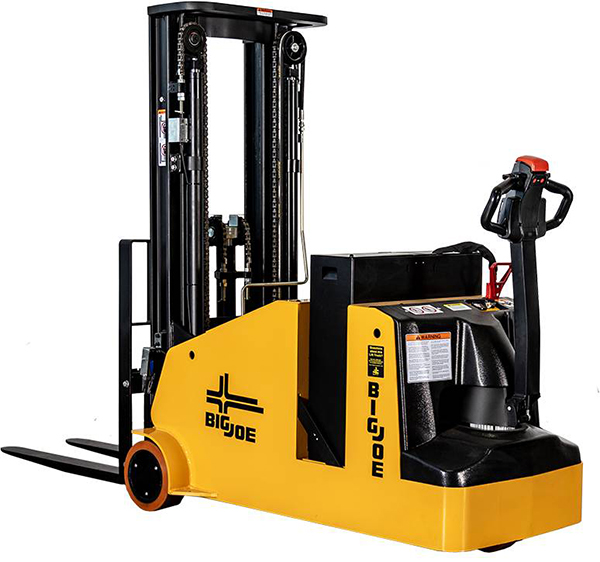

The Big Joe CB22-104 Counterbalance Pallet Stacker is a powered drive and powered lift pallet stacker with adjustable forks allowing it to handle virtually any type of pallet or skid. The CB22-104 features a counterbalance instead of front support legs providing for a tight 56" turning radius, narrower profile, and increased maneuverability. Perfect for loading and unloading trucks, pallet stacking, and positioning loads. Stacker has a 2,200 LB capacity at 24" load center, a 104" lift height, and a mast that tilts 4° back and 2° forward. Drive speed is infinitely variable from 0 mph to 3.1 mph fully loaded and 3.4 mph empty. The powerful lift motor raises loads at 25 feet/minute loaded and 33 feet/minute empty. An ergonomic, gas assist spring handle controls speed and lift with left or right hand, and features an auto-reverse safety belly button switch. The Big Joe CB22-104 counterbalance stacker is all steel construction with a welded rigid steel chassis for years of reliable service.
The Big Joe CB22-104 Counterbalance Pallet Stacker has an estimated lead time to leave the warehouse of 5 to 7 business days.
Specifications:
- 2,200 LB Capacity at 24" load center (48"L pallet with load evenly distributed)
- Lowered fork height 2" / Max. raised fork height 104"
- Battery Options: STANDARD (4) 6V 224Ah AGM batteries with 120VAC/25A built-in internal smart charger for light to medium duty use | LITHIUM 205 Ah LFP battery with 120VAC/30A built-in internal smart charger for medium duty use | INDUSTRIAL 255Ah industrial battery option with 120VAC/25A external smart charger for medium to heavy duty use - See Chart Below
- Gas assist spring handle with finger tip controls, safety reversing belly switch, and horn
- Key switch, battery discharge gauge, hour meter
- Forks adjust from 8” ID to 28” O.D.
- Individual forks are 42” long x 4” wide
- ITA class II fork carriage with 36” tall load back rest
- Mast/forks tilt 4° back and 2° forward
- Infinitely variable speed operation from 0 mph to 3.4 mph empty and 0 mph to 3.1 mph loaded
- Crawl speed travel control for precise positioning
- Gradability: 5% loaded / 8% unloaded
- Anti-roll back and regenerative “neutral” braking
- Lift speed is up to 33 fpm empty and up to 25 fpm loaded
- Lower speed is up to 29 fpm empty and up to 57 fpm loaded
- Collapsed overall height 71"
- Weight: 4,005 LBS
- Warranty Summary (request full warranty for all details): 24 month or 730 day or 2000 hour parts only limited warranty on frame weldments & powertrain | 12 month or 1000 hour parts only full truck limited warranty excluding wearables | 6 month or 180 day or 1000 hour parts and labor full truck limited warranty excluding wearables | Battery warranty on request
