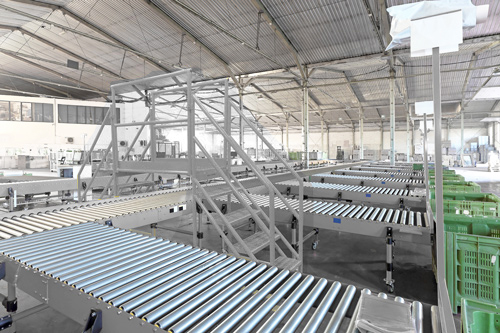

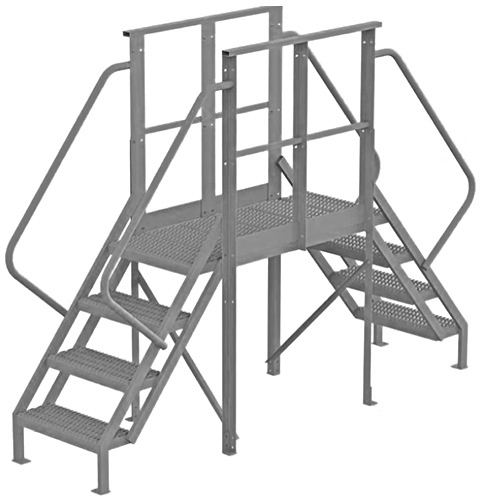

Ballymore Industrial Crossovers are made to bridge over machinery such as conveyors and pipes so that a safe walkway can be created. Stair sections have a 10” step spacing with each step having a 9 inch horizontal run. These Ballymore crossover ladders come in three pieces: one bridge and two stair parts. The four legs on each stair segment have pre-drilled plates that may be bolted to the floor. Ballymore crossovers have a step and bridge tread option of either expanded metal or serrated grating (depending on model). Heavy 1-1/4" schedule 40 pipe makes up the structural structure and rails. These Crossover ladders make the most of available floor space while adhering to OSHA regulations. Alternate configurations are available including Z-Shape, U-Shape, L-Shape etc. allowing for these crossovers to bridge over almost any obstacle. Features Full rails, midrails and toeboards. Gray powder coat finish.
Ballymore Industrial Crossovers are built to order with an estimated lead time to leave the factory of 16 weeks
Specifications:
- Capacity: 800 LBS
- Stair section overall widths: 27”
- Stair section vertical clearance: 28” to 78" (depending on model)
- Bridge section overall widths: 27”
- Bridge section horizontal clearance: 18” to 58" (depending on model)
- 10” step spacing with each step having a 9 inch horizontal run
- Rails made up of heavy 1-1/4" schedule 40 pipe
- Comes in three pieces: one bridge and two stair parts
- Step and bridge tread: expanded metal or serrated grating (depending on model)
- Alternate configurations: Z-Shape, U-Shape, L-Shape - Contact HOF
- Features full rails, midrails and toeboards
- Gray powder coat finish
