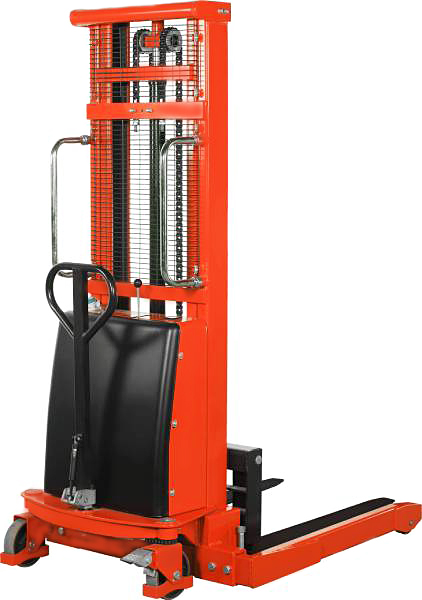

The Ballymore Stacker BALLYPAL22AG138 is a manual push with electric lift stacker featuring a 2,200 LB lift capacity and a 138" max lift height. A metal mesh mast provides enhanced forward operator visibility. This stacker has an overall fork width of 8-1/4" to 28-1/4" I.D. Operates on a 12V 150Ah battery, comes with a 110v built-in charger and battery discharge indicator gauge. The straddle legs adjust widthwise to 3 positions ranging from 46” to 58” O.D. Electric lift stacker has a fork length of 42" and a fork width of 4". Mesh protection screen for operator safety during use. The mast height is 80". The BALLYPAL22AG138 is made from the highest quality industrial components for a long service life.
The BALLYPAL22AG138 Ballymore electric lift Stacker has an estimated lead time to leave the warehouse of 3 to 5 business days.
Specifications:
- Manual Push / Powered Lift
- Capacity: 2,200 LBS
- Lowered Fork Height: 2-1/8" | Max. Raised Fork Height 138"
- Lowered Mast Height: 89-1/2"
- Overall Fork Width Adjustment: 8-1/4” to 28-1/4” I.D.
- Straddle Legs Width Adjustment to 3 positions: 46” to 58” O.D.
- 12 volt 150Ah battery, built-in 110v charger, & battery discharge gauge
- Individual Fork Size 4"W x 42"L
- Overall Size: 46"W x 66-1/2"L x 89-1/2"H Collapsed
- Weight: 1,120 LBS
