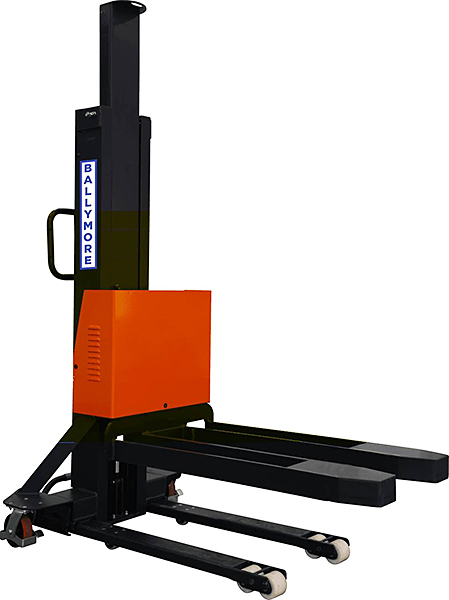

The Ballymore BALLYPALSLS-54 Self-Lifting Stacker is a special manual push / powered lift stacker that can lift itself and pallet items onto the truck. capacity of 1,100 LBS with a load center of 19-7/10”. This self-lifting stacker has a fork length of 43” and a fork width of 6.3”. Stacker runs on (1) 12V battery and features an onboard charger. Emergency stop switch and battery indicator. Lowered Mast height is 66”. Tiller has lifting/lowering button for convenient use. Distance between forks is 21”. Stacker uses a hydraulic lift mechanism and a hand lever lift control for simple use. The max. raised fork height is 54” and lowered fork height with forks lowered is 3”. The BALLYPALSLS-54 can be used inside the truck for simple loading /unloading. Dimensions of 63”L x 35”W x 66”H. The stacker's weight is 717 LBS.
The Ballymore BALLYPALSLS-54 Self-Lifting Stacker has an estimated lead time to leave the warehouse of 3 to 5 business days.
Specifications:

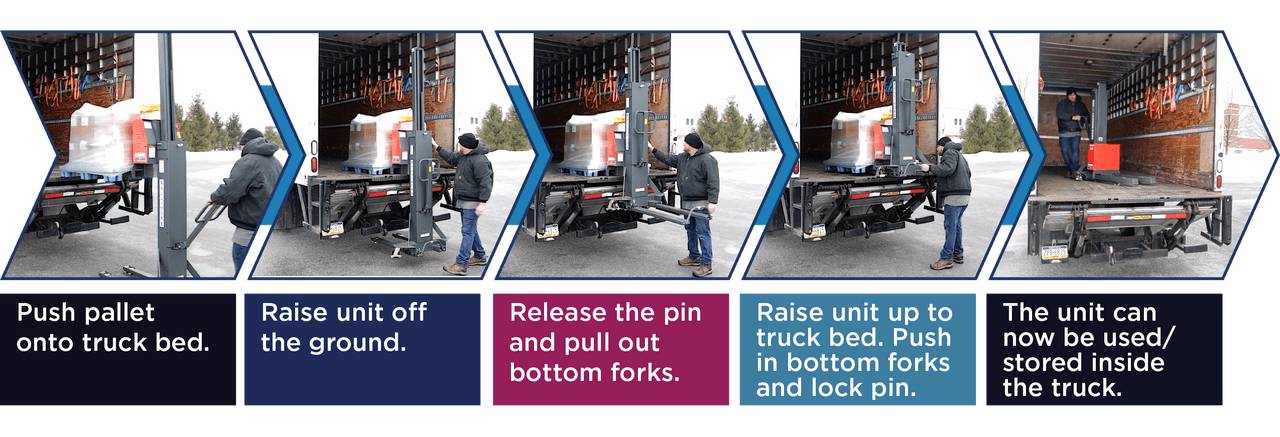

- Stacker can lift goods and itself onto an off of the truck
- Manual Push / Power Lift Stacker
- Capacity: 1,100 LBS at a 19-7/10” load center
- Fork Service Range: 3” Lowered / 54” Max. Raised
- Distance Between Forks: 21”
- Battery: (1) 12 volt battery with built-in 110v charger
- Individual Fork Size: 6.3"W x 43"L
- Hydraulic Lift Mechanism
- Hand Lever Lift Control
- Overall Dimensions: 35”W x 63”L x 66”H
- Weight: 717 LBS
