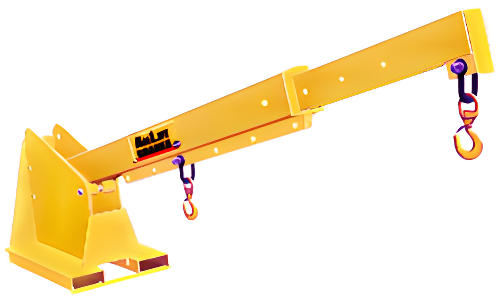

All Lift TLJP 3 Ton Orbital Forklift Boom

All Lift TLJP Orbital Telescoping Forklift Boom
All Lift TLJP Forklift Boom Drawing
Click to see More Photos
Back to List


Scroll Down for More Info
Additional Info

All Lift Orbital Telescoping Forklift Booms, models TLJP613 & TLJP630, fit easily over forklift forks, and are ideal for a variety of lifting and transporting tasks. These heavy-duty forklift boom attachments have a retracted length of 84" and an extended length of 144". A quick-release spring-loaded locking pin secures the telescoping boom, while in addition to the end hook point, the boom features 4 intermediate hooking points. Lifting capacity is 6,000 LBS at 36" & 48", down to 2,400 LBS at 144". The boom also pivots vertically, and can be adjusted to 5 different elevations, up to a maximum of 35° or 76" in height above the horizontal reach. Individual fork pockets measure 3½" x 7½". All Lift TLJP Orbital Forklift Booms come standard with one swivel hook, one shackle and a safety chain to secure it to the forklift truck.



  • Telescoping boom, with quick-release spring-loaded locking pin
  • Fork pockets are 7½"W x 3½"H on 13" or 30" centers
  • Boom angle adjustable in 5 positions, up to max. 37° or 76" high above horizontal
  • 1 swivel hook and one shackle
  • Safety chain to secure the boom to the forklift
  • Maximum extended length: 144"
  • Height: 26"




All Lift TLJP 3 Ton Telescoping Forklift Booms:
SKUCapacity/Desc.Fork Pocket CenterWeightPriceQty
TLJP6136000 LBS at 36"13"660 LBS $2,295.00
TLJP6306000 LBS at 36"30"690 LBS $2,369.00
