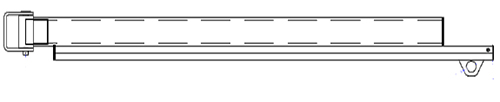

All Lift WTJ Wall Mounted Tool Jib Cranes are ideal for assisting workers using suspended tools. With a maximum capacity of 150 LBS, these lightweight tool cranes have beam spans ranging from 4' to 12'. All Lift wall mounted tool cranes have 220° rotation and are ideal for serving two or more work stations at one time. Tool Jibs come standard with enclosed track and trolley; beam height (including track) is 5½". ALL Lift Tool Jib Cranes are great for use in machine shops, assembly operations, and workshops.
ALL Lift Cranes for sale on this page have an estimated lead time to leave the warehouse of 10 to 15 business days.
Specifications:
- Capacity: 150 LBS
- Enclosed track with trolley included
- I-Beam spans are 4', 6', 8', 10' and 12'
- 220° I-beam boom rotation

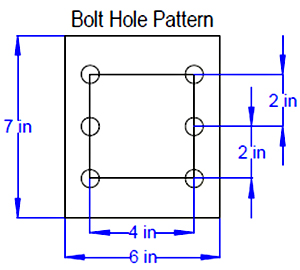

- 7" x 6" installation plate with 6 bolt holes
- All steel construction
- Limited Warranty: 3 Years
Options:
- Festoon Trolley for flatwire, SO Cord or 1/2" air hose, fit in track - Order one EFCT festoon trolley per every 5' of travel - Model ECFT
- Festoon End Clamp, fit in track - Model FEC
- Weld-on Rotation Stops (Field Mount) - Model RS
Product should be inspected frequently to insure safe operation. Testing and inspection of the unit is the responsibility of the end user after final assembly has been completed. For further details see ASME B30.17.
