Aardwolf AVLP4PRO Vacuum Lifter

Aardwolf AVLP4-PRO Vacuum Lifter
AVLP4-PRO Measurements - Click image to enlarge
AVLP4-PRO Vacuum Lifter

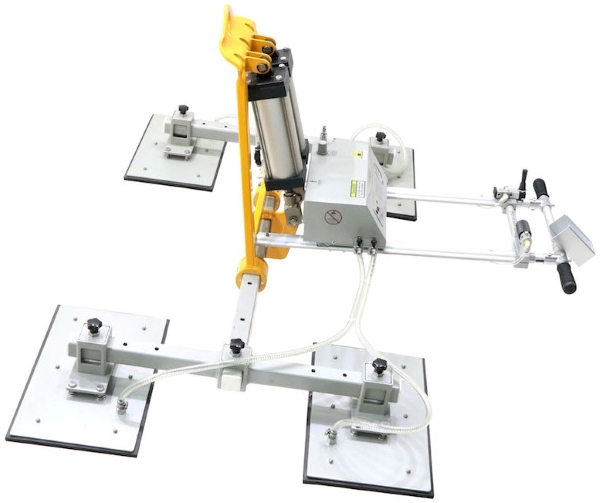

Aardwolf AVLP4-PRO Four Pad Vacuum Lifter
Click to see More Photos
Back to List
$4,787.00
SKU: AVLP4PRO
Qty:



Scroll Down for More Info

The Aardwolf AVLP4PRO Vacuum Lifter attaches to an overhead lifting device and is an ideal solution for lifting, tilting and transporting smooth or rough surface sheet material such as stone slabs, plastic, wood, laminate, and sheets of glass or metal that are greater than 12 mm thick.. Powered by compressed air, this vacuum lifter features pneumatic vertical-horizontal tilting from 0° to 90° using a pneumatic piston. Four adjustable vacuum pads, each measuring 20.5" x 12.6", can lift 1,102 LBS in the vertical position or 2,204 LBS horizontally. The handle can also be extended to assist in handling large panels. The stainless steel vacuum tank ensures safety in the event of a sudden loss of power to the vacuum pump. An acoustic and visual alarm system is powered by a clip-in 12V battery (battery charger included - charges in 30 min). The Aardwolf AVLP4PRO Vacuum Lifter requires 5-bar / 72 PSI air pressure and consumes 180 liters of air per minute. One or more suction pads may be turned off to lift smaller sheet material with included 1/4" ball valve.

Please contact HOF for an estimated lead time for the Aardwolf AVLP4PRO Vacuum Lifter.



Specifications

  • For use with smooth or rough surface sheet material such as stone slabs, plastic, wood, laminate, and sheets of glass or metal that are greater than 12 mm thick
  • (4) 20.5" x 12.6" adjustable vacuum pads
  • 1,102 LB vertical capacity / 2,204 LB horizontal capacity
  • Handle extends from 3' to 4'2" for large materials
  • Time to create suction is approximately 5 to 10 seconds depending on roughness of surface
  • 0° to 90° pneumatic tilting from vertical to horizontal
  • Powered by compressed air; requires 5 bar / 72 PSI ai pressure, consumes 180 liters per minute
  • Slide valve with ON/OFF position for grip / release
  • Acoustic and visual alarm system powered by clip-in 12V battery (battery charger included). Charging time 30 min. Continuous operation using energy saving mode: 2 hours. Continuous operation using audio alarm only: 120 hours.
  • Battery-controlled energy saver automatically turns off air supply when maximum PSI level is reached, and on again when it senses a loss of air. Ideal for running multiple pneumatic tools in the shop
  • Weight: 240 LBS
