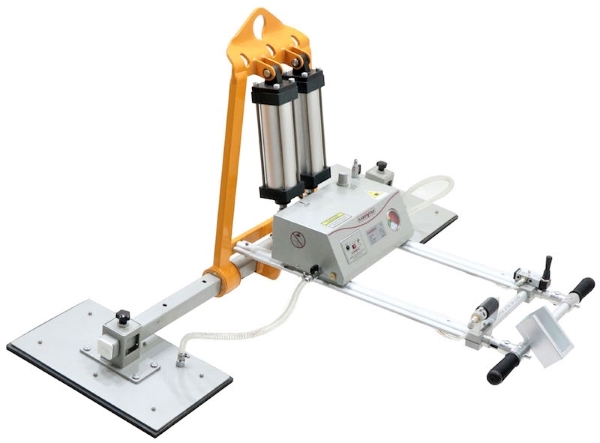

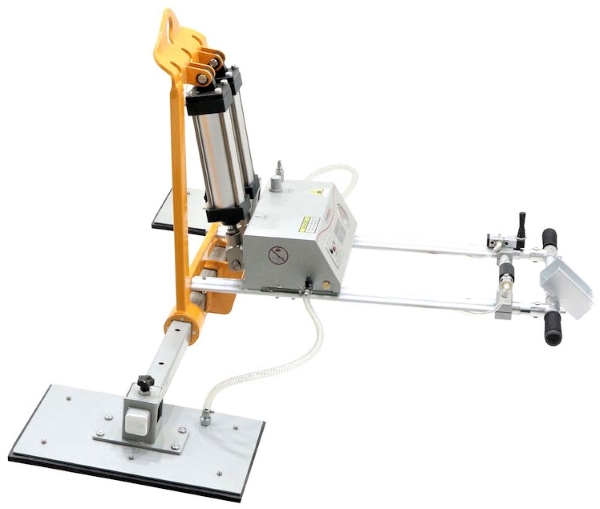

The Aardwolf AVLP2PRO Vacuum Lifter attaches to an overhead lifting device and is an ideal solution for lifting, tilting and transporting smooth or rough surface sheet material such as stone slabs, plastic, wood, laminate, and sheets of glass or metal that are greater than 12 mm thick. Powered by compressed air, this vacuum lifter features pneumatic vertical-horizontal tilting from 0° to 90° using a pneumatic piston. Two adjustable vacuum pads, each measuring 20.5" x 12.6", can lift 551 LBS in the vertical position or 1,102 LBS horizontally. The handle can also be extended to assist in handling large panels. The stainless steel vacuum tank ensures safety in the event of a sudden loss of power to the vacuum pump. An acoustic and visual alarm system is powered by a clip-in 12V battery (battery charger included). Continuous operation time using the energy saver is 2 hours; continuous operation using only the audio alarm is 120 hours. The Aardwolf AVLP2PRO Vacuum Lifter requires 5-bar / 72 PSI air pressure and consumes 180 liters of air per minute. One or more pads may be turned off to lift smaller sheet material with included 1/4" ball valve.
Specifications
- For use with smooth or rough surface sheet material such as stone slabs, plastic, wood, laminate, and sheets of glass or metal that are greater than 12 mm thick
- (2) 12.6"W x 20.5"L adjustable vacuum pads
- 551 LB vertical capacity / 1,102 LB horizontal capacity
- Handle extends from 3' to 4'2" for large materials
- Time to create suction is approximately 5 to 10 seconds depending on roughness of surface
- 0° to 90° pneumatic tilting from vertical to horizontal
- Powered by compressed air; requires 5 bar / 72 PSI pressure, consumes 180 liters per minute
- Acoustic and visual alarm system powered by clip-in 12V battery (battery charger included). Charging time 30 minutes. Continuous operation using energy saving mode: 2 hours. Continuous operation using audio alarm only: 120 hours
- Battery-controlled energy saver automatically turns off air supply when maximum PSI level is reached, and on again when it senses a loss of air. Ideal for running multiple pneumatic tools in the shop.
- Slide valve with ON/OFF position for grip / release
- Weight: 157 LBS
