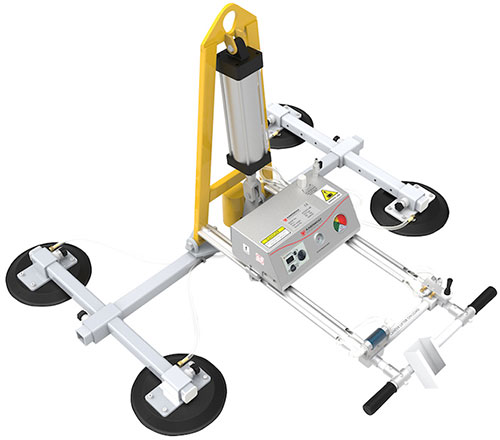

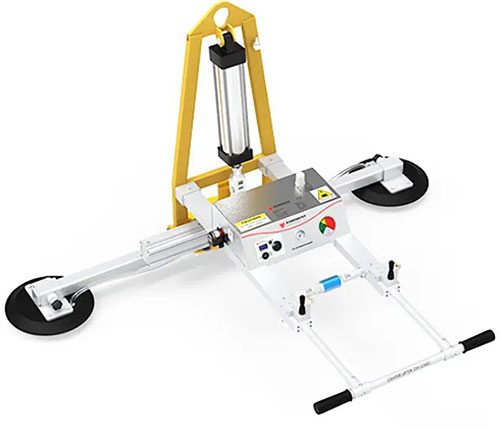

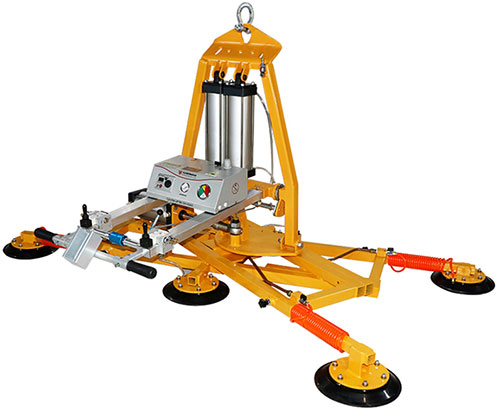

The Aardwolf AVGLP Glass Vacuum Lifters are advanced vacuum lifting devices designed to handle glass panels safely and efficiently in both vertical and horizontal positions. Engineered for flexibility and precision, these lifters feature pneumatic tilting from 0 to 90°, allowing seamless transitions between vertical and horizontal handling. Depending on the model, 90° rotation is performed either manually or via an integrated air cylinder, offering operators greater control in tight or demanding workspaces. The lifter includes an automatic vacuum re-pump system that activates immediately if any vacuum loss is detected, ensuring constant suction and maximum safety. An integrated audio and visual warning system alerts users in real time to any changes in vacuum pressure. Material attachment and release is controlled effortlessly through a convenient ON/OFF slide valve. The AVGLP Glass Vacuum Lifters are ideal for use in glazing, manufacturing, and construction environments where safe, reliable glass handling is essential.
The Aardwolf AVGLP Vacuum Glass Lifter is special order, please request a quote to get the current pricing and lead time.
Specifications
- Capacities: AVGLP2-AR (441 lbs) | AVGLP4-MR-250 (551 lbs) | AVGLP6-500 (1102 lbs)
- Pad diameter: 11-3/4"
- Application: Glass lifting and installation in construction and manufacturing
- Tilting function: Pneumatic, 0 to 90° vertical-horizontal tilt
- Rotation: 90° manual or air cylinder powered (model dependent)
- Vacuum safety: Automatic re-pump in case of vacuum loss
- Warning system: Integrated audio/visual alerts for vacuum status
- Control mechanism: ON/OFF slide valve for secure attachment and release
Model AVGLP6-500 Specific Specs
- Capacity:1102 lbs
- Power Supply: 3.7 Lipo Battery
- Standby time: 720 hrs
- Charging cycle: 1000 times
- Charging time: 2 hrs
- non-stop working time: 7 hrs
