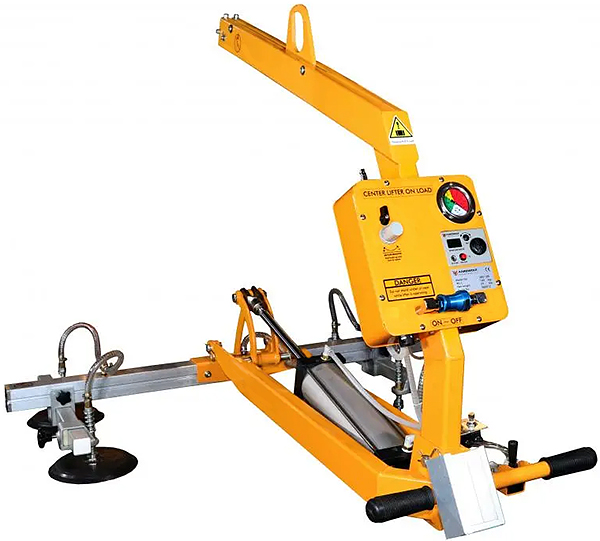

The Aardwolf ARV-180 Vacuum Lifter is a versatile and reliable lifting solution designed for handling flat, non-porous materials with safety and efficiency. This 180 degree pneumatic rotation vacuum lifter features a gas spring-controlled hook for smooth attachment, along with self-balancing technology to ensure optimal load positioning during lifting operations. Operators can easily engage or release materials using the ON/OFF slide valve, while the integrated pressure control system automatically activates the vacuum pump when needed, maintaining safe working pressure levels. For added protection, the ARV-180 Vacuum Lifter includes an advanced audio/visual alarm system powered by a rechargeable 3.7V lithium polymer battery, providing up to 7 hours of continuous operation and 720 hours of standby time. With (4) 8" suction pads and a capacity of 353 lb, this lifter is ideal for use in workshops, glass shops, and fabrication environments. Compact yet powerful, the ARV-180 Vaccum Lifter delivers reliable performance with minimal air consumption, making it a smart addition to any lifting operation that demands precision and safety.
.gif)
The Aardwolf ARV-180 Vacuum Lifter is built to order with an estimated lead time to leave the warehouse of 2-3 business days.
Specifications
- Capacity: 353 lb
- Number of suction pads: 4
- Pad diameter: 8"
- Gas spring-controlled hook for smooth and secure attachment
- ON/OFF slide valve for quick attachment and release
- Self-adjusting and balanced for safe material handling
- Automatic vacuum pump activation via pressure control system
- Audio/visual safety alarm system included
- Battery: 3.7V LiPo, 2000 mAh capacity
- Charging time: 2 hours | Non-stop working time: 7 hours
- Standby time: 720 hours | Charging cycle: 1000 times
- Air consumption: 180 liters/minute
- Required air pressure: 72 psi (5 bars)
- Packaging dimensions: 55.9" L x 20.5" W x 47.6" H
- 6-month warranty
- Net weight: 152 lb
- Gross weight: 243 lb
