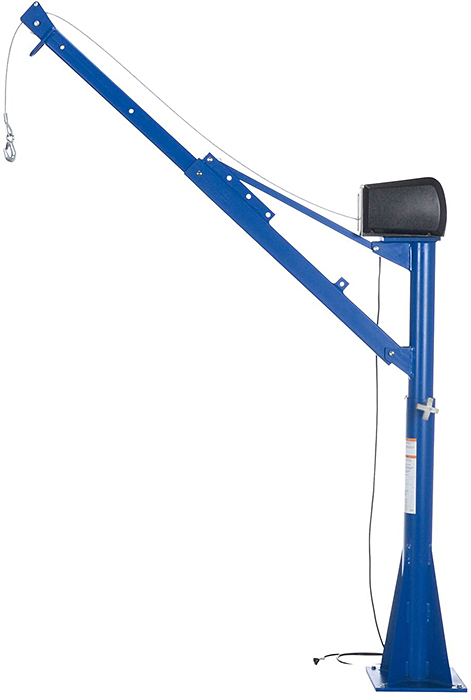

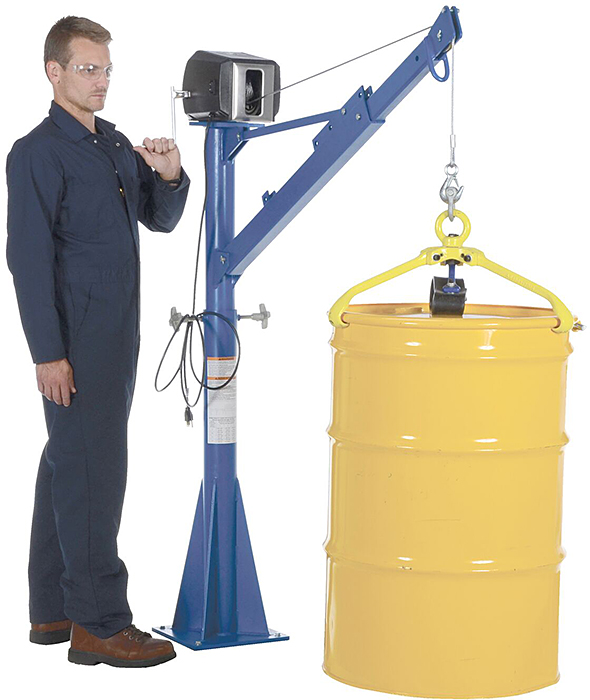

The Vestil WTJ-E-15-3-AC Power Lift Jib Crane is designed for lifting applications from elevated locations such as roofs and docks. Lift capacity ranges from 200 LB to 1,500 LBS depending on boom extension. A 115V AC powered winch with 25' of 7/32” diameter cable and a swivel snatch block allows load to be easily lifted from the ground level and raised to an elevated position. Winch can be customized with additional cable if needed. The telescoping boom extends in 12” increments with the reach ranging from 43-1/8" to 66-3/4" and the height ranging from 47-1/8" to 73-5/16". This Vestil power lift jib crane rotates 360 degrees for full accessibility. Steel construction with durable blue enamel finish. The Vestil WTJ-E-15-3-AC Power Lift Jib Crane is designed for intermittent use. Meets ANSI and OSHA specifications. Model WTJ-E-15-3-AC-CSA features a Canadian CSA approved winch.
Crane is designed for vertical lifting only. Do not use for lifting personnel or overhead lifting.
The Vestil WTJ-E-15-3-AC Power Lift Jib Crane has an estimated lead time to leave the warehouse of 3 business days
Specifications:
- Capacity ranges from 200 LBS to 1,500 LBS – see diagram below
- 115V AC powered winch with 25' of 7/32” diameter cable
- Winch cable end is a swivel snatch block with safety latch
- 360 degree rotation
- Boom telescopes in 12” increments and can be raised
- 12” x 12” mounting plate with predrilled mounting holes
- Steel construction with blue enamel finish
- Meets ANSI and OSHA specifications
- Overall size: 12”Wx 51.06”D x 66.9”H
- Weight: 165 LBS
NOTICE: Uniform capacity decreases as boom is extended and increase as boom angle is raised. See chart below for capacities at various boom positions.
