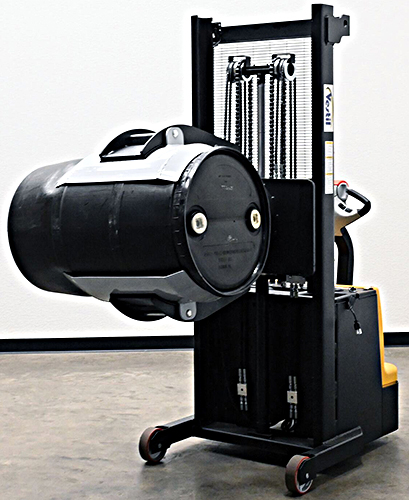

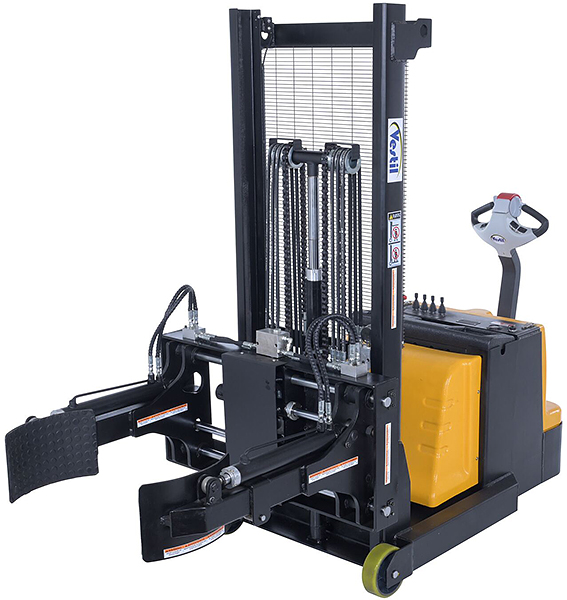

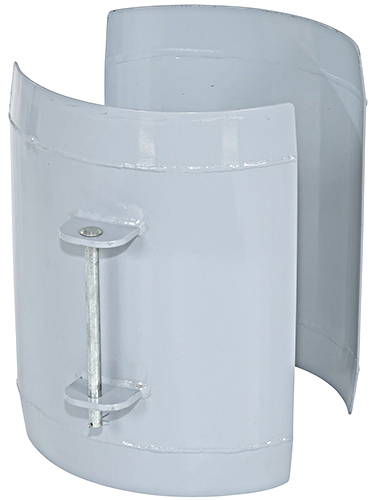

The Vestil S-MU-VDGR-64-REACH powered drum dumper with extended reach allows a single operator to easily grip, lift, transport, and dispense 16, 20, 30 & 55 gallon steel drums weighing up to 800 lbs. Optional poly drum adaptors S-MU-VDGR-PDRM-55 & S-MU-VDGR-PDRM-55 allow for the handling of 55 gallon or 30 gallon poly drums - see options below. The maximum dispensing height is 64” measured from the floor to the bottom of the drum in the horizontal position. The powered rotate function allows the drum to be rotated up to 360 degrees for easy dispensing with a drum faucet. The powered drive motor propels this Vestil drum dumper at up to 2.8 m.p.h. fully loaded. The powered lift raises the drum at 2.95” per second with a full load. (2) 12v batteries and a 115v on-board charger come standard. The Vestil S-MU-VDGR-64-REACH portable drum rotator is made of welded steel and industrial quality components for years of reliable service.
The Vestil S-MU-VDGR-64-REACH powered drum dumper has an estimated lead time of 6 to 8 business days to leave the warehouse. This drum dispenser is not returnable.
Specifications:
- Fully powered drive, lift, and drum rotation
- 35.5" Maximum Reach
- Max. Dispensing Height: 71" (measured from ground to the bottom of drum in the horizontal position)
- For use with 16, 20, 30 & 55 gallon steel drums
- 360° powered drum rotation
- Capacity: 800 LBS
- All steel welded construction for years of dependable service
- Drive motor propels unit at 2.8 mph loaded and 3.4 mph unloaded
- Estimated 3 to 4 hour operation at full charge - 8 hours when used intermittently
- (2) 12V, 95Ah lead acid deep cycle batteries, 110V integral battery charger & battery level gauge
- Ergonomic handle features throttle with infinite forward/reverse speed control, lift/lower control, & rotation control
- Belly switch with emergency reverse function and horn
- Electromagnetic disc brake with auto dead-man feature activates upon handle release
- Drum dispenser rolls smoothly on poly-on-steel steer & load wheels
- Not recommended for use on sloped surfaces
- Complies with ANSI B56.1
- Ship Weight: 1,731 LBS
Options:
- AGM Batteries, (2x12v) 75 Ah. Completely maintenance free. Sealed construction eliminates periodic watering and corrosive acid fume spills - Model AGM-UPG-2-12V

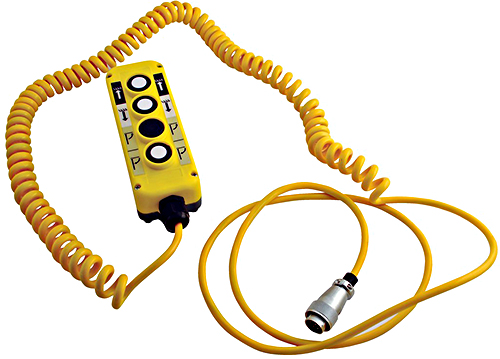

- 4-button hand pendant control with 7-pin metal connector on 8' coil cord - Model SL-HC
