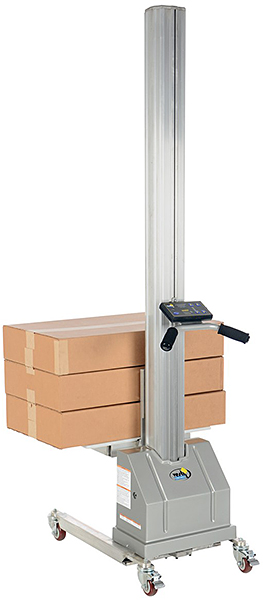

Vestil PEL-100A-D3 Aluminum Platform Lift Truck

Vestil PEL-100A-D3
PEL-INDEX Programmable Height Indexing
PEL-2PB Detachable hand pendant control
Vestil PEL-100A-D3 Aluminum Platform Lift
Click to see More Photos
Back to List
SKU: PEL-100A-D3


Scroll Down for More Info
Additional Info

The Vestil PEL-100A-D3 Aluminum Powered Platform Lift Truck weighs in at only 115 lbs making it simple to move and lift materials weighing up to 125 LBS to a maximum height of 72”. The low profile design is convenient for maneuvering in narrow aisles and tight spaces. This lightweight platform lift truck comes standard with two 12V AGM batteries and a 115V integral charger. The 23½” x 18½” platform has a 9” horizontal load center. A push button control panel allows for slow, medium, or fast lift and lower speeds. An optional detachable handheld control on a coil cord is available. An optional Programmable Height Indexing function allows the operator to select multiple preset working heights with the touch of a button. Aluminum platform lift truck rolls easily on (2) front swivel and (2) rear swivel-locking casters. The Vestil PEL-100A-D3 features all aluminum construction with a high density polyethylene platform for years of reliable service.



  • 125 LB capacity
  • Lowered Height 5½” / Raised Height 72"
  • Approximate lift time 18 seconds / lower time 15 seconds

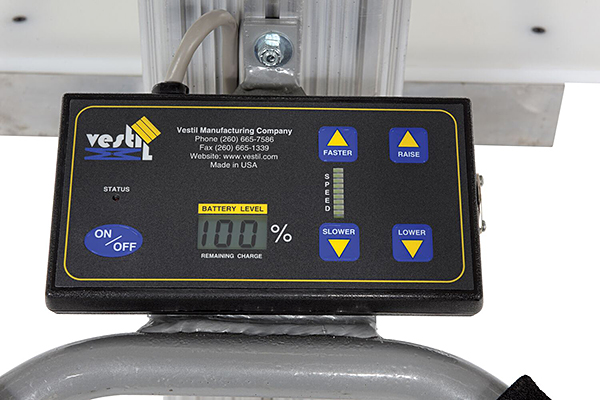

  • Push button control panel with slow, medium, and fast speeds
  • 23½” x 18½” high density polyethylene platform with 9" horizontal load center
  • (2) 12V AGM maintenance free batteries and a 115V AC on-board charger
  • (2) front swivel and (2) rear swivel locking poly casters
  • Lightweight aluminum construction



  • Various AC & DC power options (see chart below)
  • Detachable handheld control with coil cord for remote operation (PEL-2PB)
  • Wireless Remote Control available - Model PEL-RRC
  • Programmable Height Indexing option allows presets of multiple working heights at a touch of a button. PEL-INDEX-4 features 4 setpoints and 2 increments, PEL-INDEX-21 features 21 setpoints and no increments. Accurate to +-1/4" to 3/4" depending on the speed setting being used (higher speeds are less accruate).




Vestil PEL-100A Aluminum Platform Lift Trucks:
PEL-100A-D3125 LBS / 24v DC Powered Platform Lift Truck149 LBS $2,455.00
PEL-2PBDetachable hand pendant control1 LBS $104.00
PEL-RRCWireless Remote Control1 LBS $825.00
PEL-INDEX-44 Setpoints & 2 Increments Programmable Height Indexing0 LBS $1,847.00
PEL-INDEX-2121 Setpoints & 0 Increments Programmable Height Indexing 0 LBS $1,847.00
PEL-HOOKHook Arm With (3) 11/16" Holes & 1 Hook9 LBS $80.00
PEL-SPINSingle Spindle - 20"L x 3/8" Dia.11 LBS $96.00
PEL-DSPINDouble Spindle - 2 Spindles @ 20"L x 3/8 Dia. Each21 LBS $131.00
PEL-VBLKBlock Attachment - 20"L x 181-13/16"W27 LBS $151.00
PEL-CONVConveyor With Brake - Usable Dims 20-1/8"L x 22"W x 9"H40 LBS $616.00
PEL-PAILPail Dumper - Max Pail Dia. 11" / Max Capacity 125 LBS20 LBS $343.00
PEL-RRReel Rotator With 9"L (usable) x 15/16" Dia. Arbor40 LBS $392.00
