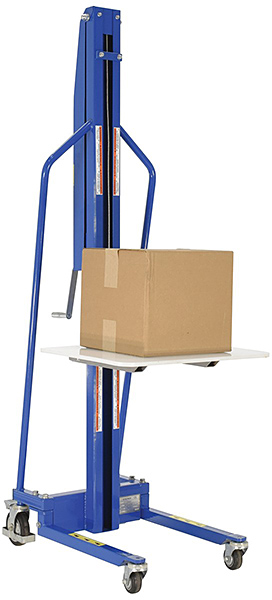

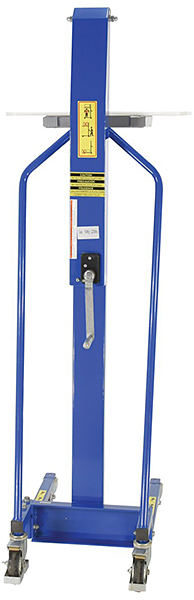

The Vestil MWP-220-M platform lift truck is designed to easily lift and lower loads weighing up to 220 LBS. This lightweight hand winch lift truck is ideal for narrow aisles and small spaces. The platform is 18½"W x 23¾"L and is height adjusted via a manual hand winch. The lowered height is 5¼" and the maximum raised height is 59". The hand winch raises the platform at an approximate rate of 1⅛" per crank rotation. An auto brake system allows for controlled platform lowering. The Vestil MWP-220-M rolls easily on front swivel wheels and rear swivel wheels with brakes. Steel construction and a tough enamel finish provide for a long service life. Several attachments are available (see chart below and photo above)
The Vestil MWP-220-M platform lift truck has an estimated lead time to leave the warehouse of 3 business days.
Specifications:
- Capacity: 220 LBS
- Manual hand winch lowers / raises platform 1⅛" per crank rotation
- Lowered height: 5¼" / Raised height: 59"
- Auto brake for controlled lowering
- Platform size: 23¾"W x 18½"L
- (2) 3" dia. swivel load casters, (2) 5" dia. swivel locking steer casters
- Overall size: 23¾"W x 33"L x 72"H
- Steel construction
- Weight: 105 LBS
Options: See Image Above & Chart Below
- V Block Attachment - For carrying roll material. Size is 16"W x 16"D x 3-1/4"H, Handles a max. roll diameter of 24".
- Reel Rotator Attachment - Allows for the easy rotation of roll material from the vertical to horizontal position and vice versa.
- Double Spindle Attachment - double poles that are 2"D x 17-1/2"L. There is 5-1/2" between spindles.
- Single Spindle Attachment - single poll that is 2"D x 23-1/2"L
