Vestil LM-EBT-4-24 Telescoping Forklift Boom

Vestil LM-EBT-4-24 Forklift Boom
Vestil LM-EBT-4-24
Click to see More Photos
Back to List
SKU: LM-EBT-4-24


Scroll Down for More Info
Additional Info

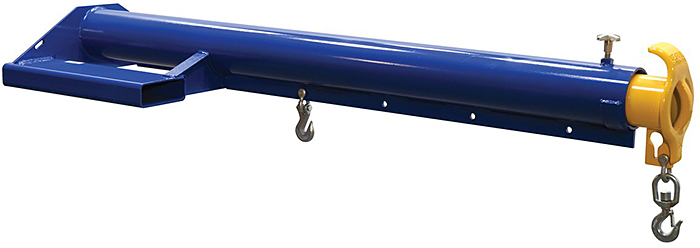

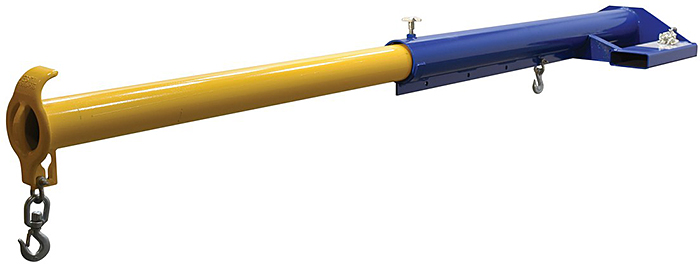

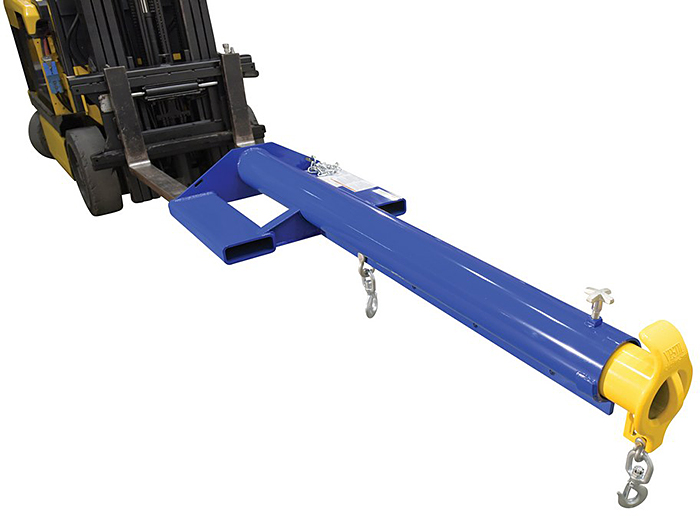

The Vestil LM-EBT-4-24 Telescoping Forklift Boom is an economical and efficient choice for a wide array of lifting & transporting applications. This heavy-duty forklift boom attachment has an 85” retracted length and a max. 153” extended length. Lifting capacity ranges from 4,000 LBS at 36” to 1,750 LBS at 144”. Boom comes standard with one rigid and one swivel lifting hook. In addition to the end hook point, this versatile forklift boom features 4 convenient intermediate hook points. The LM-EBT-4-24 is constructed of structural steel with a durable enamel finish for years of the service. Welded to meet AWS specifications.

OSHA regulations require that users of forklift attachments obtain written approval from the forklift manufacturer before using the attachment.



  • Telescopic with an infinitely adjustable locking screw
  • Fork pockets are 7½"W x 2½"H usable on 11", 24", 30", or 36" center depending on model
  • Larger pockets optional - see options below
  • Two lifting hooks (1 swivel & 1 rigid)
  • Slot lock for easy chain use
  • End hook point plus 4 intermediate hook points
  • Safety restraint to secure the boom to the forklift for safe operation
  • Overall Extended Size: 151½”L x 13½"H


Options: (may increase standard lead time)

  • Model LM-FP - Larger Fork Pockets 8¼"W x 4¼"H (Inside Dimensions)
  • Model LM-FP-37 - Larger Fork Pockets 7"W x 3"H (Inside Dimensions)
  • Model LM-FP-39 - Larger Fork Pockets 9"W x 3"H (Inside Dimensions)


          (LM-EBT-4-24 Only)


Vestil Forklift Booms:
SKUCapacity/Desc.Fork Pocket CenterMax. Hook PointEst. Lead Time To Leave WarehouseWeightPriceQty
LM-EBT-4-114000 LBS AT 36"11"144"30 Bus. Days330 LBS $902.00
LM-EBT-4-244000 LBS AT 36"24"144"3 Bus. Days333 LBS $893.00
LM-EBT-4-304000 LBS AT 36"30"144"30 Bus. Days375 LBS $933.00
LM-EBT-4-364000 LBS AT 36"36"144"30 Bus. Days381 LBS $970.00
Options (may increase lead time):
LM-FPLarger Fork Pockets 8-1/4"W x 4-1/4"H (Inside Dimensions) 23 LBS $290.00
LM-FP-37Larger Fork Pockets 7"W x 3"H (Inside Dimensions) 23 LBS $290.00
LM-FP-39Larger Fork Pockets 9"W x 3"H (Inside Dimensions) 23 LBS $290.00
