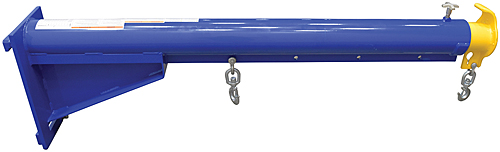

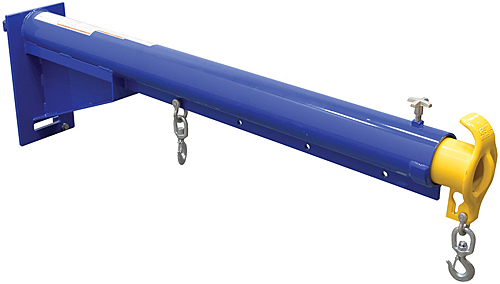

The Vestil LM-CM6-EBT-4 Carriage Mounted Forklift Boom is a class III carriage mount boom for lifting loads weighing up to 4,000 LBS. This carriage mounted telescoping forklift boom has a 79¾" retracted length and can extend up to 145⅞" - see chart below for capacities at each length. Two lifting hooks come standard, and length is adjustable using an infinitely adjustable locking screw. The Vestil LM-CM3-EBT-4 is made of steel with a durable blue and yellow powder coat finish.
OSHA regulations require that users of forklift attachments obtain written approval from the forklift manufacturer before using the attachment.
The Vestil LM-CM3-EBT-4 Telescoping Forklift Boom is built to order with an estimated lead time to leave the warehouse of 35 business days.
Specifications:
- Capacity: 6,000 LBS at 36" - see capacity chart below
- Telescopic with an infinitely adjustable locking screw
- Class III carriage mount
- Two lifting hooks
- End hook point plus 4 intermediate hook points
- Overall Size: 79¾”L to 145⅞”L x 12"W x 27⅝"H
- Weight: 383 LBS
Class III fork carriages are rated for loads up to 10,998 LBS and have a carriage bar spacing of 20"
