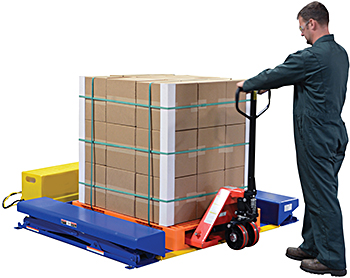

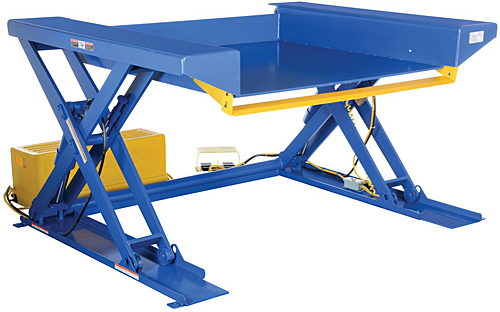

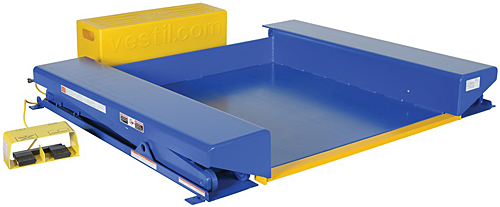

The Vestil EHLTG-5270-2-48 Floor Level Lift Table is perfect for situations when a forklift is not available. The 1/2" lowered height allows this ground lift scissor table to be loaded easily with just a pallet jack. Pallets or other materials weighing up to 2000 lbs can be loaded onto the 52"W x 70"L platform and quickly raised to a 48” ergonomic working height. An upper travel limit switch stops the deck at the maximum height reducing motor wear. A 2 H.P., 460V, 3-Phase, 60 Hz totally enclosed motor powers the lift. Other Vestil EHLTG-5270-2-48 floor level lift table features include an entry-side electric toe guard to protect pinch points, velocity fuse to maintain deck height in the event of loss of hydraulic pressure, and a remote power unit that can be conveniently located up to eight feet away from table. A foot control comes standard - an optional hand pendant control is available.
The Vestil EHLTG-5270-2-48 Floor Level Lift Table is built to order with an estimated lead time to leave the warehouse of 8 weeks.
Specifications:
- 2,000 LB capacity
- Platform Size: 52"W x 70"L
- Lowered height 1/2" | Max. raised height 48"
- 2 H.P. motor operating on 460v/3phase comes standard (other voltages available)
- External power unit can be located up to 8' feet away from table

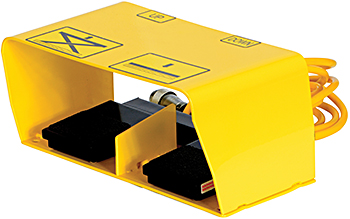

- Foot control with guard comes standard (Wall mount NEMA-4/12, 2 button hand control available)
- Entry-side electric toe guard protects pinch points during lowering of deck
- Velocity fuse to maintain platform height in the event of a loss of hydraulic pressure
- 3,000 PSI hydraulic component rating
- Welded to meet A.W.S. standards
- Weight: 2,101 LBS
Options:
- Handheld Pendant Control on 8' coil cord - Model HH2PB-8-FC2
- Hand Control Pedestal - Model HCP-2642
- Voltage change to 115v/1ph, 208-230v/1ph, 208-230v/3ph (replaces standard 460v/3ph) - Models With Prefix VCC

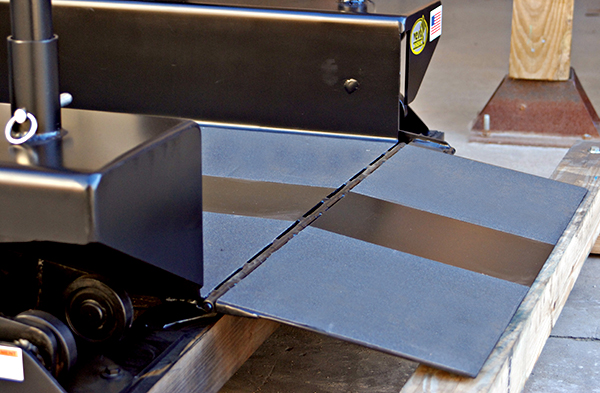

- Steel Rollover Bridge (3,000 LB Capacity, adds a fold down bridge to back side of table that allows a pallet jack to roll over the table - Model EHLTG-52-SB

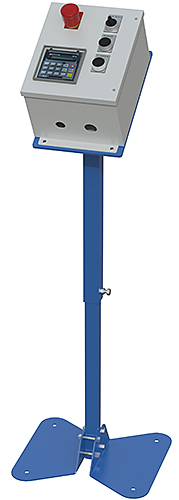

- Programmable Height Control features fully integrated controller with 4 preset heights for repeat positioning applications. 15 button keypad with LCD display - Model EHLTG-PROGRAM

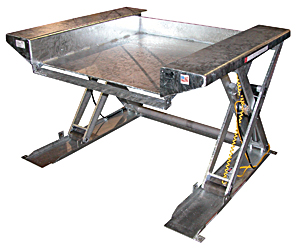

- Galvanized Finish - Contact HOF for pricing

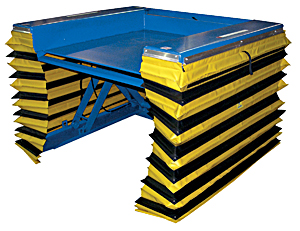

- Accordion Skirt - Contact HOF for pricing
