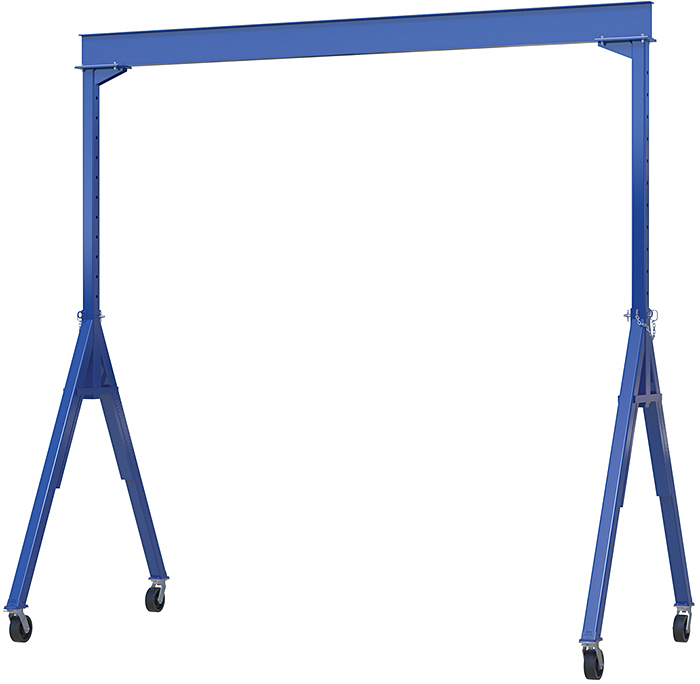

Each Vestil 4 Ton Gantry Crane, series AHS-8 is designed to hoist and position heavy materials. These steel gantry cranes provide an economical alternative to non-movable cranes. Made of solid steel for long service life. Beam height is adjustable in 6" increments. The distance between the uprights is also adjustable by simply loosening locking plate bolts, moving the uprights, and then re-tightening bolts. 8" diameter four position locking swivel wheels that allows the user to lock casters at 0°, 90°, 180° and 270° to facilitate easy transport of crane from one place to another. Height can be adjusted in 6" increments. Designed for fast setup. Durable blue powder coat finish. The Vestil AHS-8 4 ton gantry crane is not designed to be moved while loaded.
Each Vestil 4 Ton Gantry Crane has an estimated lead time to leave the warehouse of 3 to 5 business days.
Specifications:
- Max. Capacity: 4 tons
- W Type I-Beam
- Usable distance between uprights is overall beam length minus 11"
- Usable trolley travel length is overall beam length minus 30"
- I-beam height is adjustable in 6" increments
- Distance between the uprights is adjustable
- 8" four-position swivel locking phenolic casters (lock at 0°, 90°, 180°, 270°)
- Optional AHS-KIT includes 2 Ratcheting Come-alongs for easy one person height adjustment
Options:
- Optional Height Adjustment Kit for easy one-person height adjustment - includes 2 ratcheting come-alongs. Not for lifting - Model AHS-KIT
- Total Locking Casters - locks casters from swiveling and rolling. Does not allow user to lock casters in a fixed direction for rolling - Set of 4 - Model AHS-6/8-TLC
- V-Groove Casters and Track - Contact HOF for a quote
- Festoon System -115V AC - Model FES-KIT
- Power Traction Drive w/ 3 button hand control (factory installed)- Contact HOF for a quote
- Stationary Leg Option (factory installed) - Model AHS-STLO
Hoist and Trolley sold separately. Click link to see our selection of Hoists and Trolleys
Product should be inspected frequently to ensure safe operation. Testing and inspection of the unit is the responsibility of the end user after final assembly has been completed. For further details see ANSI/ASME B30.2 & B30.7.
