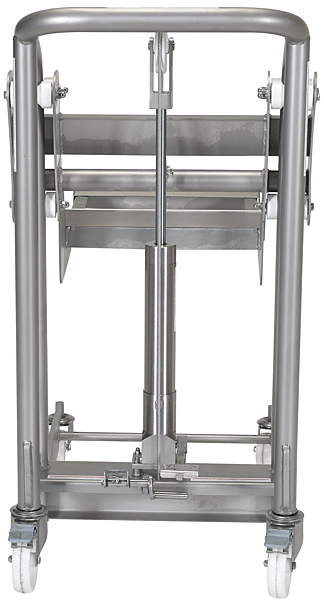

The ULMA ULM-HRH-850 Stainless Steel Roll Lifter is a hydraulic, foot-pump operated roll handler which is designed for use in clean rooms, food preparation and any other environment where equipment needs to be able to be washed down easily. With a maximum capacity of 850 LBS, this roll lifter features a cradle which is adjustable in 1" increments up to 16" wide, making it able to handle rolls up to 24" in diameter. Rolls are lifted using the easy foot pump, with a range from 5⅜" to 23". The ULM-HRH-850 rolls on four nylon 3⅛" dia. swivel wheels and has two attached rear brakes. Made of 304L stainless steel including hydraulic cylinders and piston.
The ULMA ULM-HRH-850 Stainless Steel Roll Handler normally leaves the warehouse in 3 to 5 business days.
Specifications:
- Capacity: 850 LBS
- Service Range: 5⅜" to 23"
- Adjustable cradle in 1" increments to 16"
- Max. Roll Diameter: 24"
- Four nylon 3⅛" dia. swivel wheels
- Two rear foot brakes
- 304L Stainless Steel construction
- Overall Size:23"W x 35"L x 43H"
- Weight: 138 LBS
