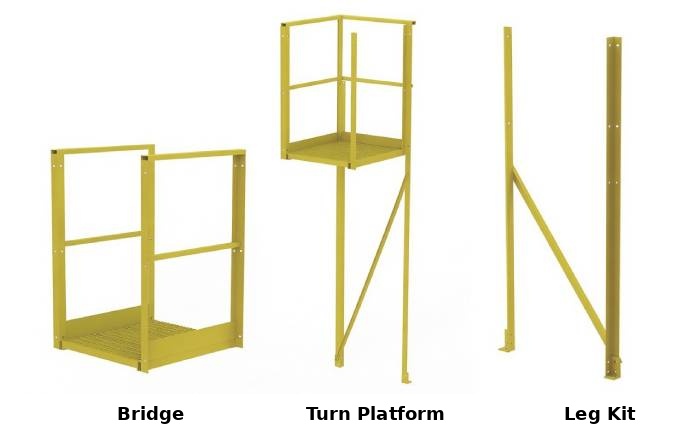

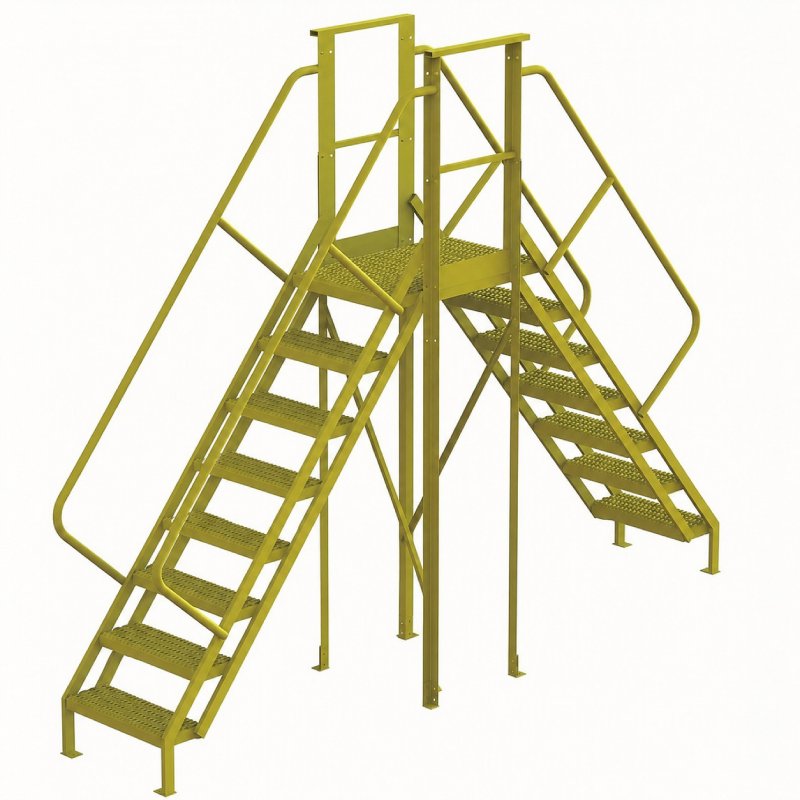

The Tri-Arc 8 Step Crossover Ladder has a 80" platform height, a 24" wide platform, and a 1,000 lb. rated capacity. This modular crossover system allows workers to safely walk over obstacles, machinery, or hazardous areas without going around them. Bridge spans of 20" or 30" can be combined to achieve up to 90" of horizontal clearance, with a leg kit available for spans exceeding 90". Steps are 24" wide and 10" deep and are available with either perforated or grip strut tread. The 42" guardrail height and 1"x2" reinforced rectangular steel tube construction provide superior strength and safety. Overall assembled height is 122" with a base width of 26.5" and a vertical clearance of 78". Stair units are available in 50°, 75°, and 90° incline angles to suit your space and access requirements. Available in straight, L-shaped, U-shaped, and Z-shaped configurations using turn platforms. Finished in yellow powder coat, the Tri-Arc 8 Step Crossover Ladder meets applicable OSHA and ANSI standards.
.gif)
The Tri-Arc 8 Step Crossover Ladder has an estimated lead time to leave the warehouse of 7 to 10 business days.
Specifications:
- 1,000 lb. capacity
- Platform height: 80" / Overall height: 122"
- 24" wide x 10" deep steps
- Base width: 26.5"
- Vertical clearance: 78"
- 42" guardrail height
- Bridge spans of 20" or 30": Combinable up to 90"

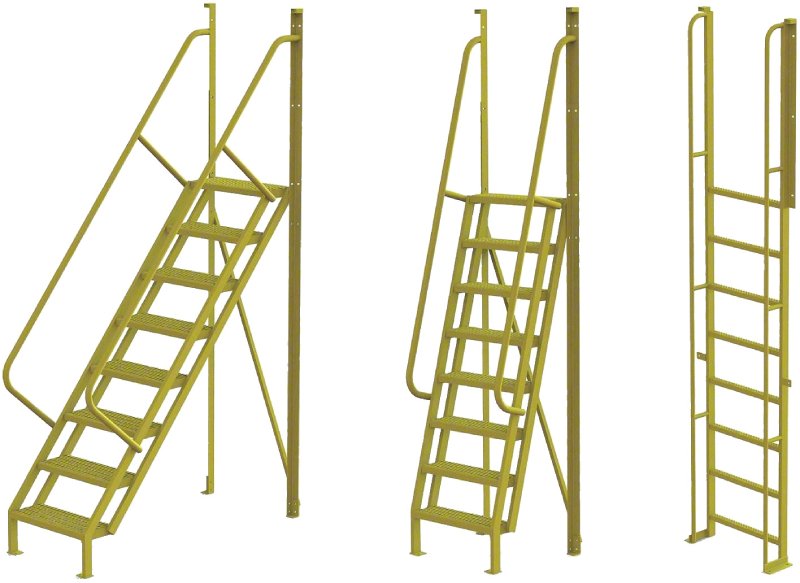

- Available in 50°, 75°, and 90° incline
- Perforated (Grip Strut Tread Available - Please Request a Quote)
- 1"x2" reinforced rectangular steel tube construction
- Yellow powder coat finish

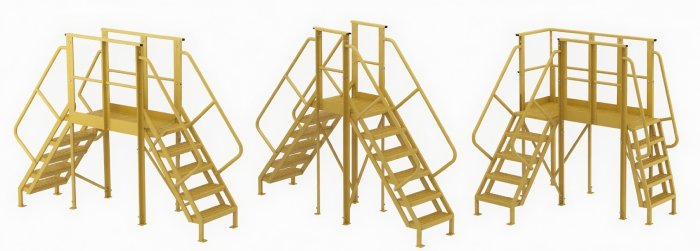

- Available in straight, L-shaped, U-shaped, and Z-shaped configurations
- Meets applicable OSHA and ANSI standards
