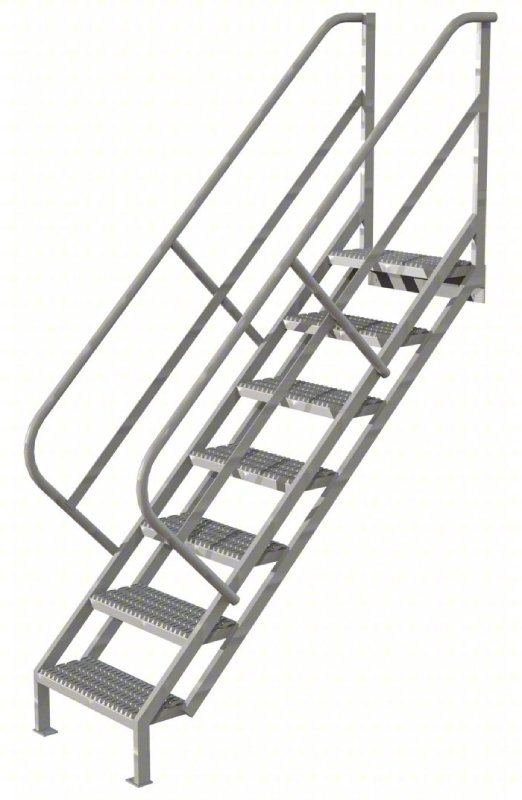

The Tri-Arc 7 Step Stairway Ladder has a 66.5" top step height, a 450 lb. rated capacity, and 24" wide steps. Built on a 45-degree safety angle incline, this stair unit provides safe and comfortable access to mezzanines, platforms, and elevated work areas. The frame is constructed from 1" x 2" rectangular steel with 1.5" round tubular handrails for a sturdy, reliable climb. Steps are available with either perforated or serrated tread for slip resistance. Overall assembled height is 104.5". Finished in powder coat gray, the Tri-Arc 7 Step Stairway Ladder ships all-welded and complies with applicable OSHA and ANSI standards.
.gif)
The Tri-Arc 7 Step Stairway Ladder has an estimated lead time to leave the warehouse of 5 to 7 business days.
Specifications:
- 450 lb. capacity
- Top step height: 66.5" / Overall height: 104.5"

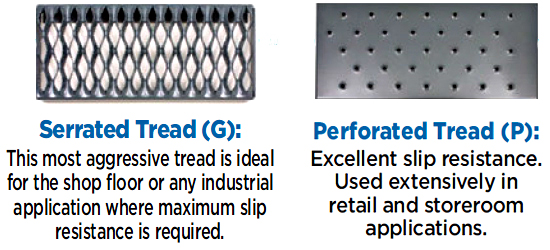

- 24" wide perforated or serrated tread steps
- 10" deep top step
- 45-degree safety angle incline
- 1.5" round tubular handrails
- 1" x 2" rectangular steel frame
- Powder coat gray finish
- Ships all-welded
- Complies with applicable OSHA and ANSI standards
