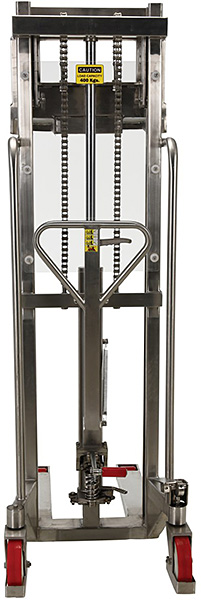

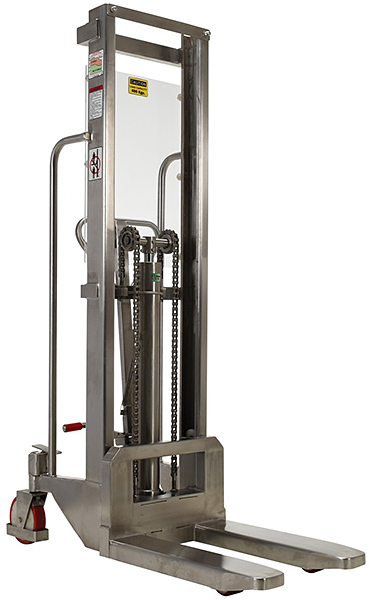

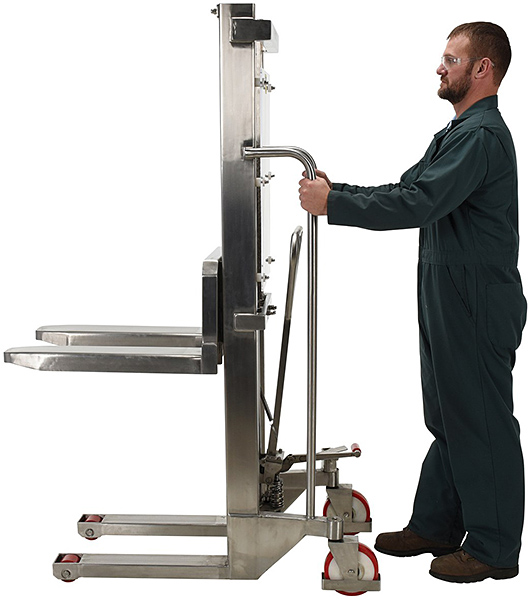

The Vestil HYD-10-DA-SS Hefti-Lift is a stainless steel work positioner that provides a complete solution for transporting, lifting, and positioning materials for a variety of clean room, sanitary, and washdown applications. This stainless steel platform lift raises up to 800 LBS of material to a maximum height of 59". Forks are 25½"L x 22"W O.D. A dual acting manual hydraulic hand pump raises the load at 3/4" per pump. A Non-slip chain allows for accurate height positioning. The HYD-10-DA-SS stainless steel work positioner rolls easily on two front rigid and two rear swivel poly-on-steel casters and includes a foot brake. All welded stainless steel construction for years of service. Not for use with pallets.
The Vestil HYD-10-DA-SS Hefti-Lift stainless steel work positioner has an estimated lead time to leave the warehouse of 3 business days.
Specifications:
- Work positioner is all stainless steel construction
- Fork Service Range: 3⅛" lowered to 59" max. raised
- Dual acting manual hydraulic hand pump with knob release
- Fork travel per stroke is 3/4"
- Fork dimensions are 25½"L x 22"W
- Foot operated brake
- Automatic load check valve for safety
- Large transparent guard panel
- Outrigger Width: 13-3/4" I.D. | 20" O.D.
- (2) 7” x 1-3/4" poly on steel steering wheels
- (2) 3" x 2-3/4" poly on steel load wheels
- Capacity: 800 LBS
- Net Weight: 315 LBS
- Overall Size: 48”L x 23½"W x 74”H
