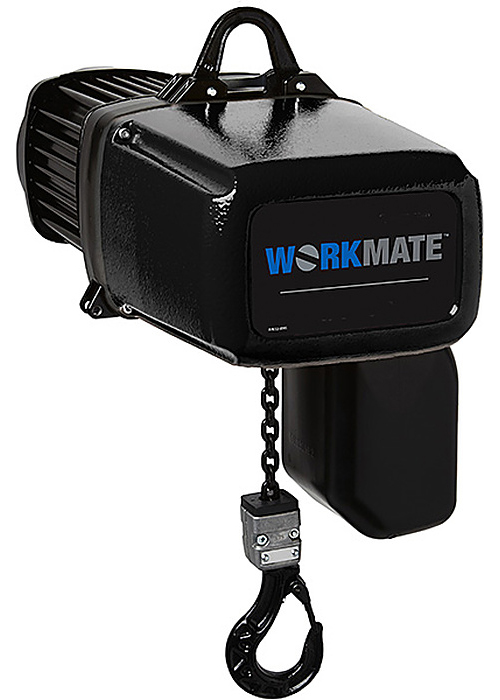

Spanco Workmate 3 ton electric chain hoists are built for heavy, repetitive lifting in production, maintenance, and assembly areas, and they are available in two body styles so you can match the hoist to the speed your application demands. The SP2000 is a double-fall hoist with a 6/3.75 HP dual-speed motor that lifts at 16 FPM high speed and 4 FPM low speed for precise load positioning, while the SP2500 is a single-fall hoist with a 6/3.75 HP dual-speed motor that lifts at 25.2 FPM high speed and 6.3 FPM low speed for faster cycle times. Both models run on 230V or 460V three-phase power, carry an H4 duty rating for all-day industrial use, and come standard in 10', 15', or 20' lift heights with your choice of eyebolt or hook suspension. A cast aluminum body and end caps with IP65 protection keep the hoist dust tight and water jet resistant, and the 42V low-voltage controls make the 2-button pendant safer to handle. Inside, a 3-stage helical gearbox, polygon shaft and hub connections, and an easy-to-service slip clutch provide smooth, long-lasting performance, while a maintenance-free DC spring-loaded disc brake holds the load securely when the motor stops. The case-hardened manganese phosphate profile steel load chain offers an 8:1 safety factor and excellent corrosion resistance, and every hoist ships complete with load chain, chain container, 2-button pendant control, power cord, suspension, and load hook. Spanco Workmate 3 ton electric chain hoists pair with Spanco manual and motorized trolleys for use on jib cranes, gantry cranes, and workstation bridge cranes, and are backed by a two-year warranty.
10', 15', & 20' lift heights for sale on this page, see chart below. Custom lift heights from 10' to 40' available in 1' increments, please request a quote if you need a custom lift height.
Specifications:
- Capacity: 3 Tons (6,000 LBS)
- Standard Lift Heights: 10', 15', or 20' - custom lift heights from 10' to 40' in 1' increments available
- Suspension: Eyebolt or hook
- Power: 230V or 460V, 3 phase, 60 Hz
- SP2000: Motor 6/3.75 HP dual-speed, 2 chain falls | Amp Draw: 20.0/12.2 (230V), 9.6/5.3 (460V)
- SP2000 Lift Speeds: 16 FPM High Speed / 4 FPM Low Speed
- SP2500: Motor 6/3.75 HP dual-speed, 1 chain fall | Amp Draw: 20.0/12.2 (230V), 9.6/5.3 (460V)
- SP2500 Lift Speeds: 25.2 FPM High Speed / 6.3 FPM Low Speed
- Duty Rating: H4 (HMI)
- Controls: 42V low-voltage control with 2-button pendant
- Protection: IP65 dust tight and water jet resistant housing with built-in drains
- Housing: Cast aluminum body and end caps
- Load Chain: Case-hardened manganese phosphate profile steel chain with corrosion-resistant coating
- Safety Factor: 8:1
- Gearbox: 3-stage gearbox with helical gearing
- Overload Protection: Easy-to-service slip clutch
- Brake: Maintenance-free DC spring-loaded single-disc brake holds the load when power is removed
- Hooks: Durable cast hooks with guided safety latches
- Includes load chain, chain container, 2-button pendant control, 3' power cord, suspension, and load hook
- Two-year warranty on material and workmanship
Options:
- Additional lift heights from 10' to 40' in one-foot increments - Contact HOF for pricing

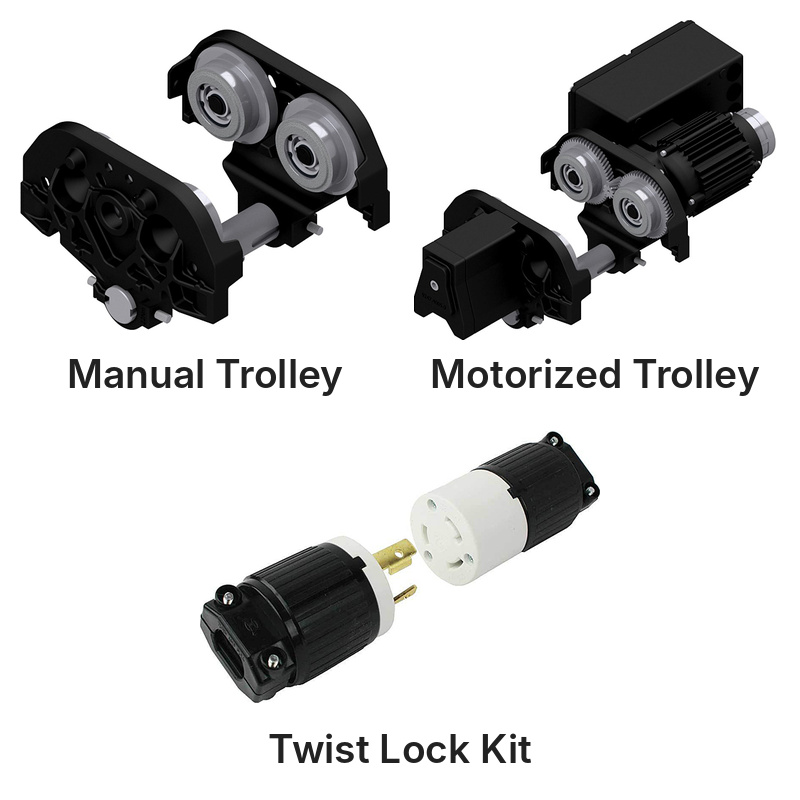

- Twist lock plug kit(male & female)connects incoming main electrical power to hoist/trolley,
quick connect/disconnect, for 3P/250V or 3P/480V - See Chart Below - Manual push trolley, 3, 4, & 5 ton, 3-9/16" to 11-13/16" flange widths - See Chart Below

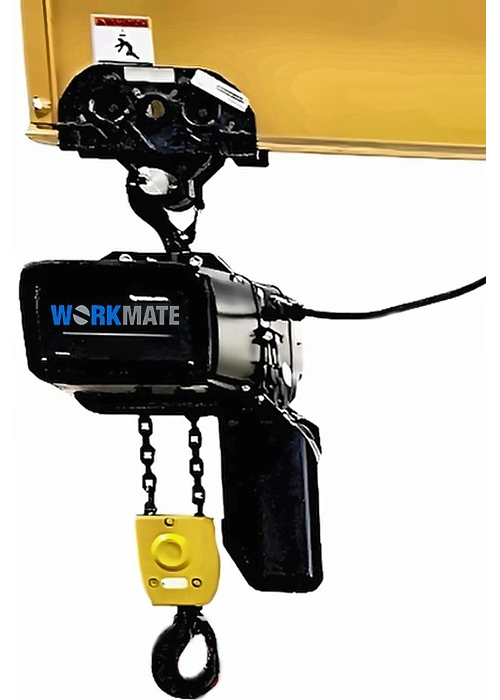

- Motorized trolley, 3 & 4 ton, 3-9/16" to 11-13/16" flange widths, with 4-button pendant that controls hoist up/down & trolley forward/reverse
OR 6-button pendant that controls hoist up/down, trolley forward/reverse, bridge or drive motion forward reverse - See Chart Below - Motorized trolley with IP65 protection for protection in dusty areas, rain, accidental splashes, and light hose washdowns - Contact HOF for pricing
