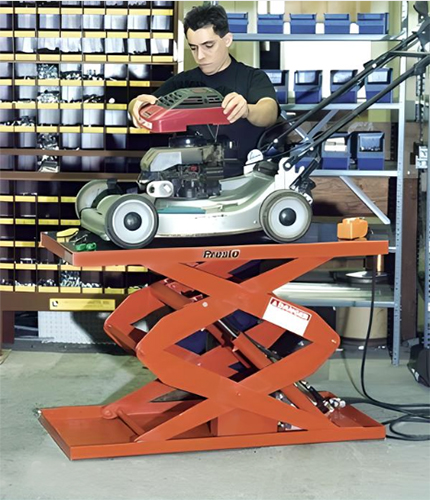

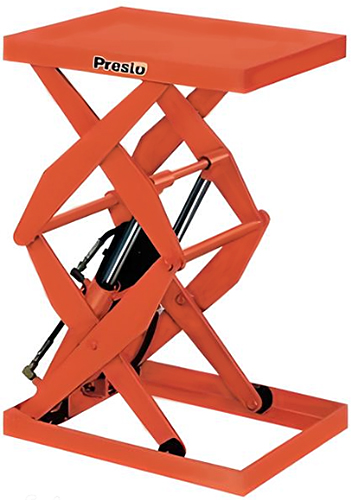

The Presto DXS72 Double Scissor Lift Tables are engineered for applications requiring extended vertical travel within a compact footprint. With a vertical travel of 72" and capacities of either 2,000 LBS or 5,000 LBS, these lifts are ideal for tasks such as work positioning, assembly, repair, and inspection in environments like factories, warehouses, and repair shops. Safety and durability are paramount, featuring heavy-duty hydraulic cylinders with chrome-plated rams, polyurethane seals, and lifetime-lubricated bearings on all rollers and pivot points. The hinged platform design allows easy access to internal components for maintenance. Optional features include foot controls, oversized platforms, and portability kits, making the Presto DXS72 Double Scissor Lift Tables a versatile solution for diverse material handling needs.
Presto DXS72 Double Scissor Lift Tables are built to order with an estimated lead time to leave the warehouse of 4 to 6 weeks.
Specifications:
- Lift Capacities: 2,000 LBS and 5,000 LBS
- Vertical Travel: 72"
- Lowered Height: 12-1/2" (DXS72-20) | 14 ½" (DXS72-50)
- Raised Height: 84-1/2" (DXS72-20) | 86"" (DXS72-50)
- Standard Platform Size: 20" x 53" (DXS72-20) | 32" x 57" (DXS72-50)
- Maximum Platform Size: 36" x 66" (DXS72-20) | 54" x 72" (DXS72-50)
- Motor 1 HP (DXS72-20) | 3 HP (DXS72-50)
- Voltage: 115V / 1phase / 60 hz (DXS72-20) | 230,460V / 3 Phase / 60 Hz (DXS72-50)
- Construction: Heavy-duty hydraulic cylinders with chrome-plated rams and polyurethane seals
- Bearings: Lifetime-lubricated on all rollers and pivot points
- Platform Access: Hinged platform for convenient cylinder access
- Control Options: Hand control pendant (standard), foot control (optional)

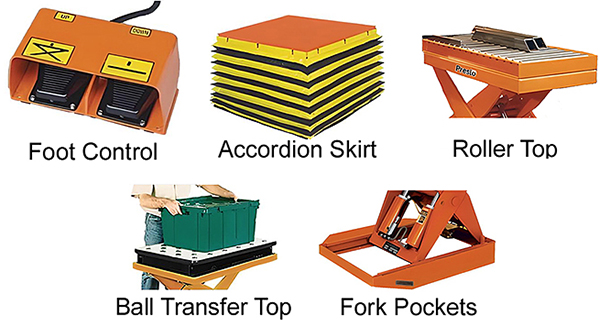

Options:
To see all available options for Presto Lift Tables, Click On Link or photo below to view selections & request a quote.
