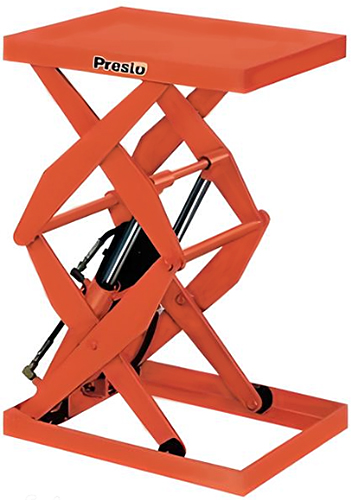

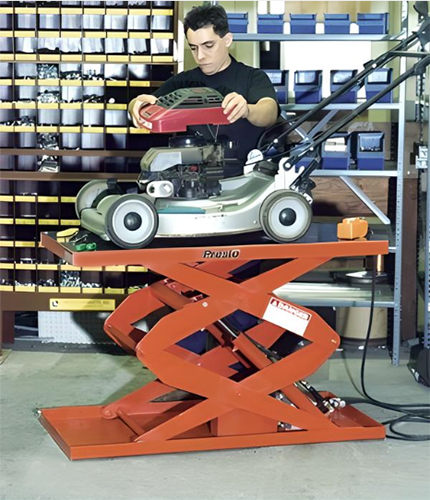

The Presto DXS36 Double Scissor Lift Tables are engineered for applications requiring extended vertical travel within a compact footprint. With a vertical travel of 36" and capacities of either 1,000 LBS, 1,500 LBS or 2,000 LBS, these lifts are ideal for tasks such as work positioning, assembly, repair, and inspection in environments like factories, warehouses, and repair shops. The standard platform measures 16" x 24", with optional sizes up to 30" x 36" to accommodate various load dimensions. Powered by a 1/2 HP 115V single-phase motor, the DXS36 Double Scissor Lift Tables offer lifting speeds of either 40 or 42 seconds, ensuring efficient operation. Safety and durability are paramount, featuring heavy-duty hydraulic cylinders with chrome-plated rams, polyurethane seals, and lifetime-lubricated bearings on all rollers and pivot points. The hinged platform design allows easy access to internal components for maintenance. Optional features include foot controls, oversized platforms, and portability kits, making the Presto DXS36 Double Scissor Lift Tables a versatile solution for diverse material handling needs.
Presto DXS36 Double Scissor Lift Tables are built to order with an estimated lead time to leave the warehouse of 4 to 6 weeks.
Specifications:
- Lift Capacities: 1,000 LBS, 1,500 LBS & 2,000 LBS
- Vertical Travel: 36"
- Lowered Height: 7 ½" (DXS36-10 and 15) | 6" (DXS36-20)
- Raised Height: 43 ½""
- Standard Platform Size: 24" x 36" (DXS36-10 and 15) | 18" x 42" (DXS36-20)
- Maximum Platform Size: 36" x 48" (DXS36-10 and 15) | 36" x 54" (DXS36-20)
- Lifting Speeds: 40 seconds (DXS36-10), 42 seconds (DXS36-15), 40 sec (DXS36-20)
- Motor: 1/3 HP
- Voltage: 115V, Single Phase, 60 Hz
- Construction: Heavy-duty hydraulic cylinders with chrome-plated rams and polyurethane seals
- Bearings: Lifetime-lubricated on all rollers and pivot points
- Platform Access: Hinged platform for convenient cylinder access
- Control Options: Hand control pendant (standard), foot control (optional)

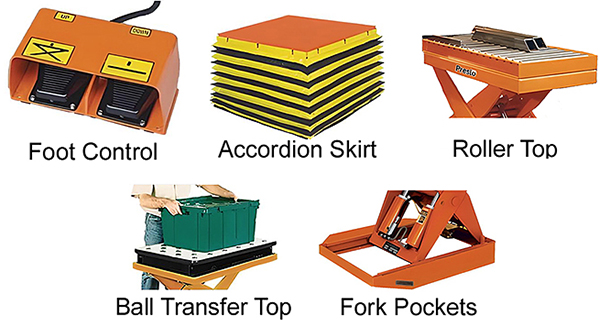

Options:
To see all available options for Presto Lift Tables, Click On Link or photo below to view selections & request a quote.
