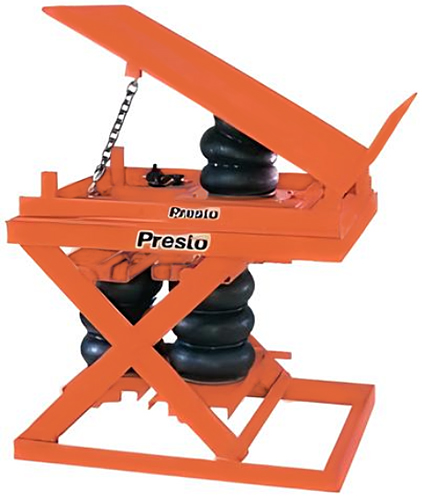

Presto AXST20 Pneumatic Lift And Tilt tables are designed to enhance material handling efficiency in industrial environments. These 2,000 LB tables combine a pneumatic scissor lift with max raised height of 43" and up to a tilt table that tilts up to 30° allowing the operator to position loads precisely without manual lifting or repositioning. Lift and tilt operations are controlled separately. Base size of 36" x 48". Platform size of 36" x 48", 48" x 48", 48" x 56" or 48" x 60" available (depends on model).Operating on standard shop air (80 PSI at 15 CFM), these pneumatic lift and tilt tables eliminate the need for electrical power. A pedestal-mounted hand control with an 8-foot cord for remote operation comes standard. An optional foot control is available for hands-free use. Safety features include a built-in pressure relief valve to prevent overloading. Lifetime warranty on the actuator ensures long-term reliability and performance. Presto AXST20 pneumatic lift and tilt tables are required to be securely lagged to the floor for operation.
Presto AXST20 lift and tilt tables are built to order with an estimated lead time of 4 to 5 weeks to leave the warehouse.
Specifications:
- Load Capacity: 2,000 lbs.
- Lowered Height: 19" | Raised Height: 43"
- 0° to 30° tilt
- Base Size: 36" x 48"
- Platform Sizes: 36"W x 48"L | 48"W x 48"L | 48"W x 56"L | 48"W x 60"L
- Lift and tilt functions are controlled independently
- Air Requirements: 80 PSI at 15 CFM
- Standard pedestal-mounted hand control with 8' cord / optional foot control
- Pressure relief valve
- Must be lagged to the floor
- Lifetime warranty on actuator
