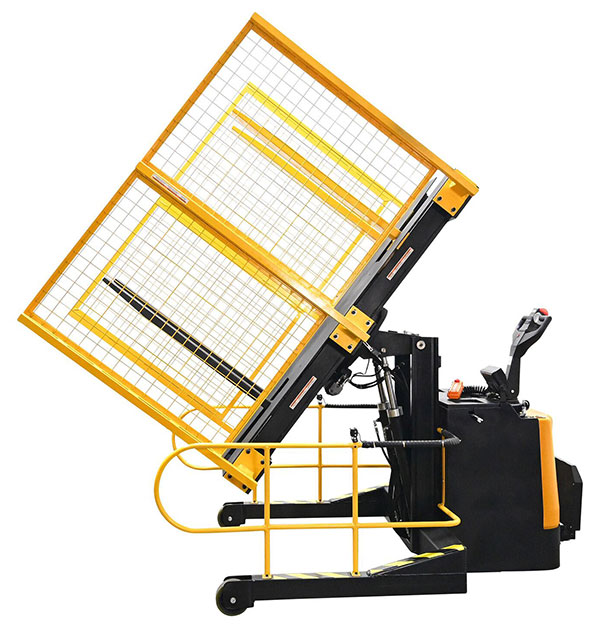

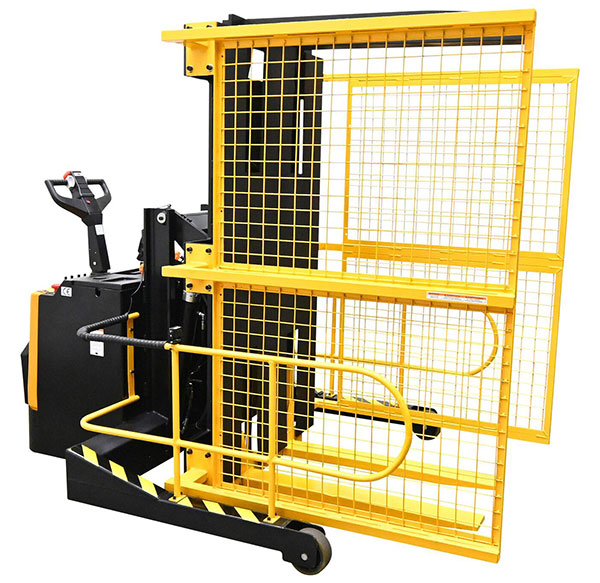

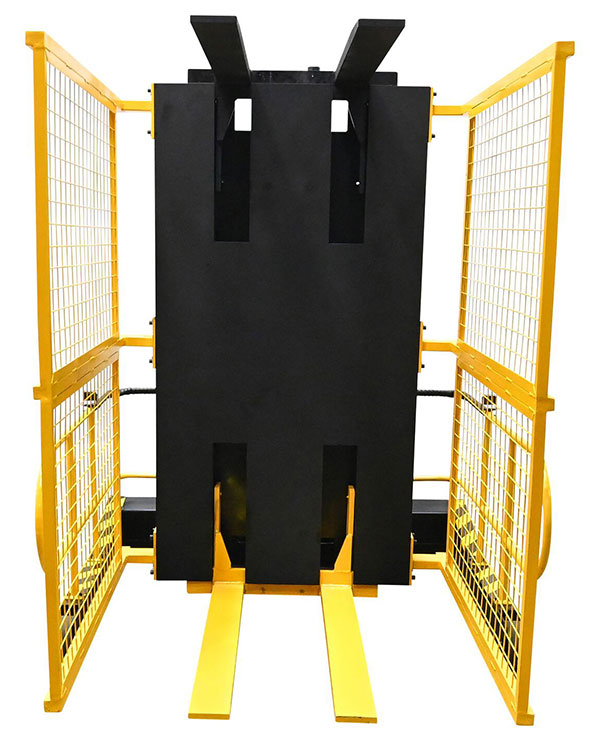

The Vestil PI-P-SL-3276-PRSR Portable Pallet Inverter is a powerful and efficient solution for handling and inverting pallets and skids with a uniform capacity of 3,000 LBS. Cameras are included on both sides of the guardrails for precise load position using the front facing flat panel screen. Designed for versatility, this portable pallet inverter accommodates a usable fork opening from 32” to 76”, with forks measuring 6” W and 48” L. The inverter's robust design includes a lowered height of 3-1/4” and an overall size of 113” L, 56-5/8” W, and 108-1/4” H. With an 84-1/2” turn radius and stabilizer casters (two 5” diameter, 2” wide), it provides stability and maneuverability. Additional features include a driver caster (9-7/8” diameter, 3-1/8” wide) and load rollers (6-1/4” diameter, 2-3/8” wide). Its ergonomic handle has a height of 5-3/16” and a diameter of 1-1/8” for user comfort. This Inverter offers exceptional performance and safety features, including a belly reverse button and steel mesh sides for secure enclosure during operation. Infinite forward and reverse speeds allow for precise control, while the on-board battery charger and level gauge ensure uninterrupted operation. This versatile pallet inverter is an ideal choice for safe and efficient material handling.
Please add item to cart to request a quote for pricing and estimated lead time for the Vestil PI-P-SL-3276-PRSR Portable Pallet Inverter.
Specifications:
- Capacity: 3,000 LBS

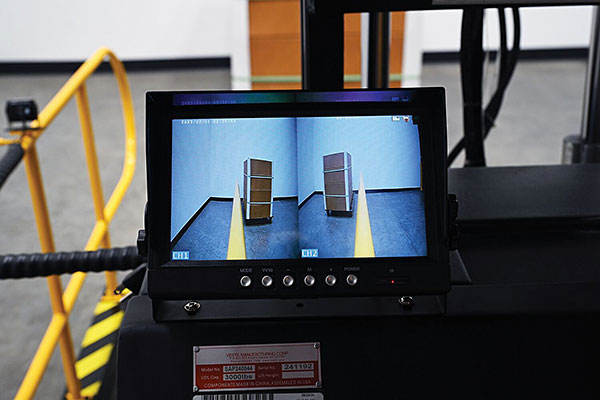

- Guardrails with camera on each side and flat panel monitor for precise load positioning
- Safety cage
- Fork Opening: 32” x 76” (the height of the pallet must fall within this measurement)
- DC powered drive, powered tilt and manual rotation
- Wide straddle legs allow unit to be used with both closed bottom and open bottom pallets and skids
- Lowered Height: 3-1/4”
- Fork Size: 22” x 42-1/8”
- Turn Radius: 84-1/2”
- Rider Platform
- 24V DC motor, (4) 6V 200Ah batteries, 115V on-board charger, battery level gauge, and emergency battery disconnect all come standard

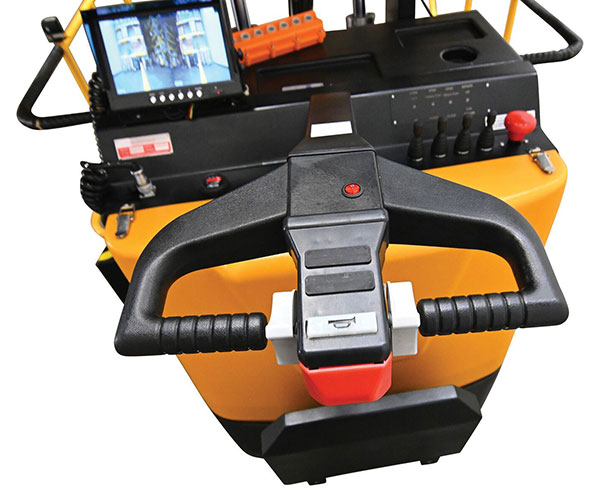

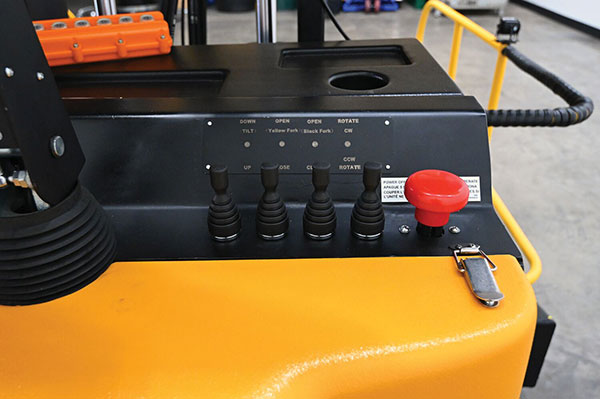

- Ergonomic handle features easy to operate throttle with infinite forward and reverse speeds, tilt/lower controls, safety belly reverse button & horn
- Electromagnetic disc brake with automatic dead-man feature that activates when user releases handle
- Overall Dimensions: 113”L x 56-5/8”W x 108-1/4”H
- Weight: 3,463 LBS
