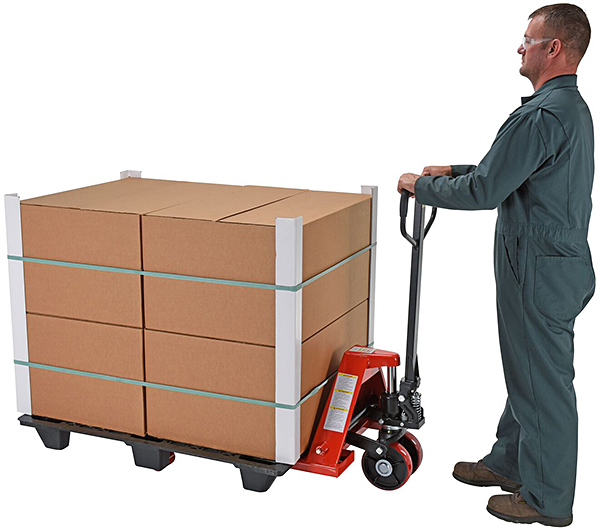

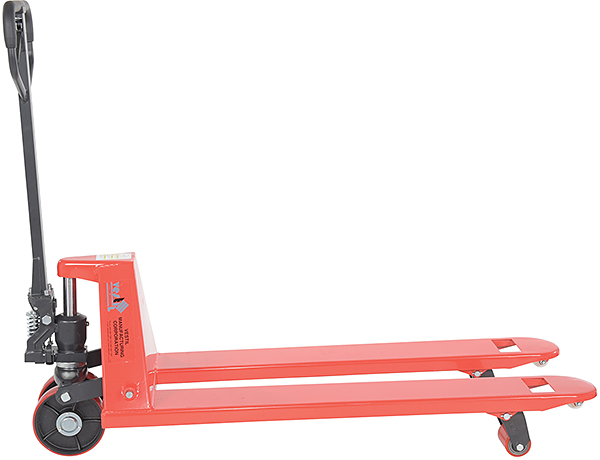

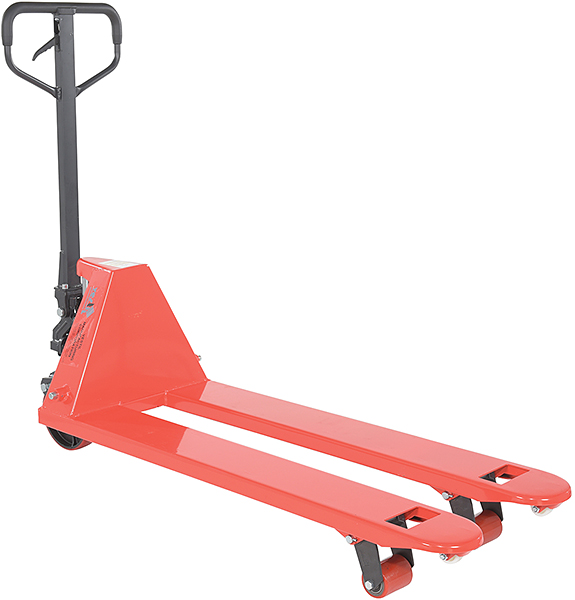

The Vestil PM5-2048 narrow pallet truck features a fork spread of 20-5/8" wide O.D. and a fork length of 48" long. The fork service range is 2-7/8” lowered to 7-3/4” fully raised. The ergonomic design requires only 75 pounds of pulling force when the truck is at the full 5,500 LB capacity. 7" wide reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. Other features include a spring-loaded handle that returns to vertical position when not in use, solid steel adjustable push rods, dust covers on steering wheels, and a chrome-plated hydraulic pump piston. The Vestil PM5-2048 narrow pallet truck rolls easily on poly-on steel wheels.
Specifications:
- Capacity: 5,500 LBS
- Overall Fork Size: 20-5/8"W x 48"L
- Fork Service Range: 2-7/8" lowered to 7-3/4" raised
- Reinforced triple-formed steel forks
- Individual fork width: 7"
- Chrome-plated hydraulic pump piston for long seal life
- Bearing dust covers on steering wheels
- Poly on steel wheels
- Steel construction with red enamel finish
- Weight: 196 LBS
