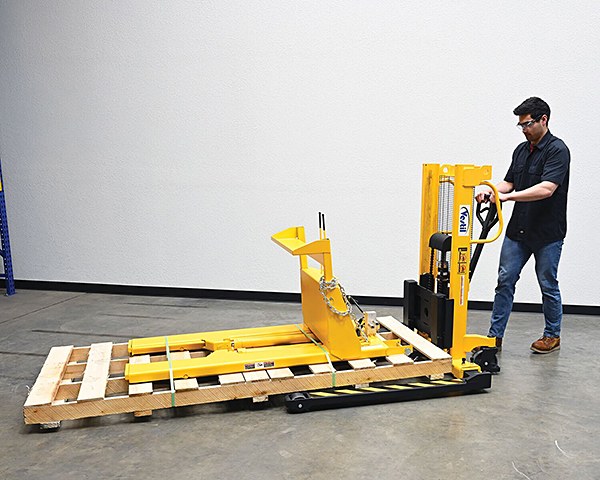

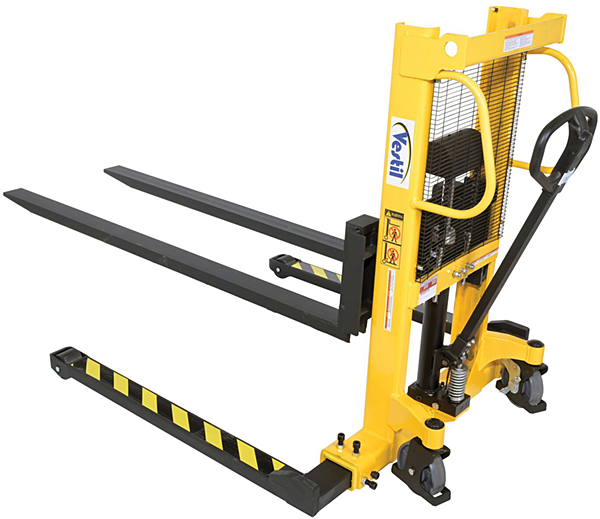

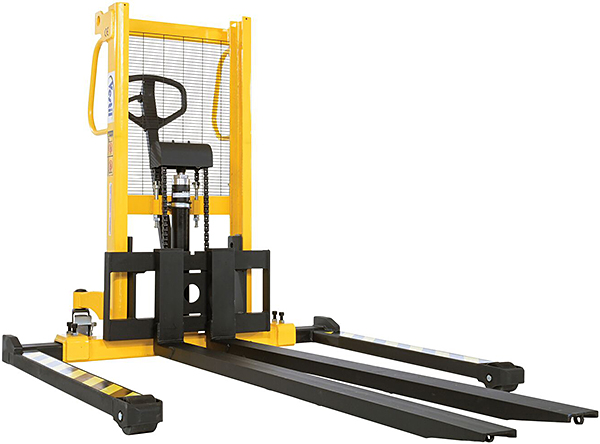

The Vestil VHPS-550-AA-F72 Manual Pallet Stacker features 72" long forks allowing it to lift long pallets and skids. Stacker is narrow enough to fit through standard sized doors, simple to operate, and maintenance free. This Vestil manual pallet stacker can lift 2,000 LBS to a maximum height of 35”. Stacker features adjustable forks and adjustable legs allowing it to be used for lifting regular pallets and open bottom skids. Fork width adjusts from 7.875"W O.D. to 26.75"W O.D. and leg width adjusts from 40.125"W O.D. to 50"W O.D. Forks are raised via hydraulic hand pump operation and lowered using a release lever located on the handle. Manual pallet stacker lifts forks 1" per handle pump. The Vestil VHPS-550-AA-F72 rolls easily on two rigid and two swivel casters with brake.
Specifications:
- Individual Fork Size: 4"W x 72"L
- Ideal for long pallets and long open bottom skids
- Capacity: 550 LBS
- 2-3/4" lowered height / 35" max. raised height
- Fork width adjust from 7.875"W O.D. to 26.75"W O.D.
- Leg width adjust from 40.125"W I.D. to 50"W I.D.
- Full height push handle for easy steering
- Excellent visibility through welded mesh guard
- Manual hydraulic hand pump lift operation with lever release on the handle
- Two rigid and two swivel casters with brake
- Overall Size: 50"W (max. leg width) x 93"L x 55"H
- Weight: 885 LBS
