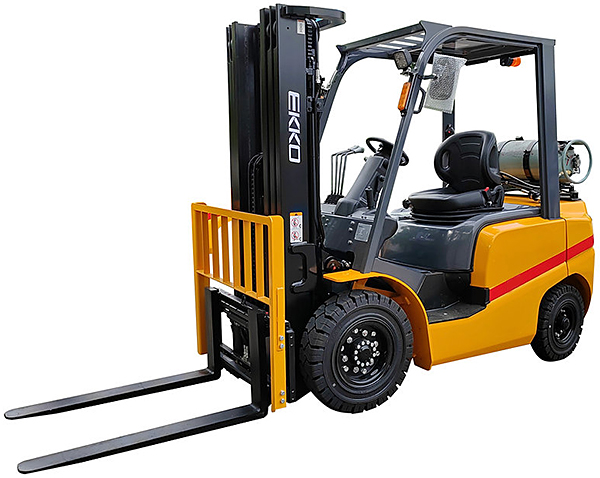

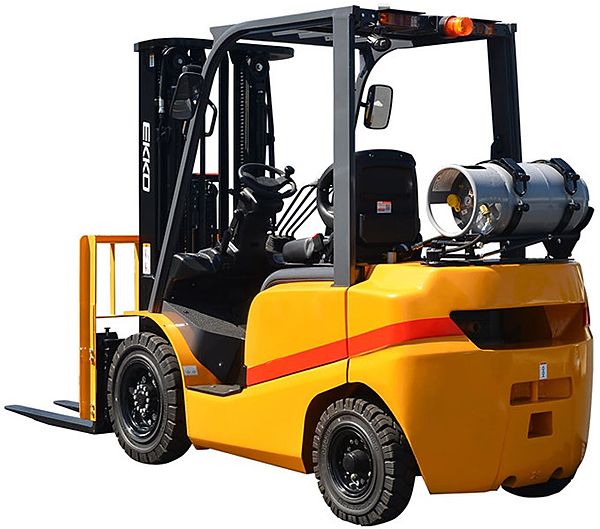

The Ekko EK30TLP Propane Forklift is a pallet moving marvel designed for use in stock areas, in warehouses, on loading docks, and on manufacturing floors. This Ekko forklift features a 185” max. fork height, adjustable width forks, side shifting forks, cushion connection and whole suspension cab, hydraulic floor pedal brake, Kubota PSI 2.4L engine, and a mast tilt angle of 6 degrees front and 12 degrees rear. Capacities At 24" Load Center (48"L pallet with evenly distributed load): 0" to 158" 6,000 LBS and 159" to 185" 5,800 LBS. The maximum travel speed is 11 MPH. loaded. The Ekko EK30TLP Propane forklift is made of industrial grade components and a high quality Kubota drive engine to handle the roughest industrial environments. This Propane forklift meets is Tier 4 EPA compliant.
The capacity of the EK30TLP Ekko Forklift is rated at a 24" load center making it ideal for working with standard 48" long pallets.
Please check with HOF Equipment for a current lead time on the the Ekko EK30TLP Propane Forklift.
Specifications:
- Capacity At 24" Load Center: 0 To 158" 6,000 LBS | 159" to 185" 5,800 LBS
- Max. Raised Fork Height: 185" | Free lift 37.9"
- Individual forks are 42” long x 4.9” wide x 1.7” thick
- Mast Tilt: 6° front / 12° rear
- Width Adjustable and Side Shifting Forks
- Collapsed mast height 86.2" | Fully raised mast height 234"
- Min. Ground Clearance (at the mast): 4.7"
- Maximum Travel Speed: 11 MPH loaded | 12.1 MPG empty
- Operator controls including steering wheel, lift/lower, tilt, side shift, throttle, emergency stop button, battery discharge indicator gage, and horn located in comfortable cabin
- Electronic power steering
- Semi-suspension seat, and small steering wheel, electro-hydraulic direction changing, optimized hydraulic system
- Cushion connection & whole suspension cab absorb vibration
- Kubota PSI 2.4L Engine satisfies CARB 4 regulations
- Tier 4 EPA compliant
- Hydraulic controls and floor brake pedal
- LED headlights and brake lights
- Solid pneumatic tires
- Overall Size: 151"L x 48.2"W x 86.2"H (collapsed mast)
- Service Weight: 10,108 LBS
- Warranty: 1 year limited
