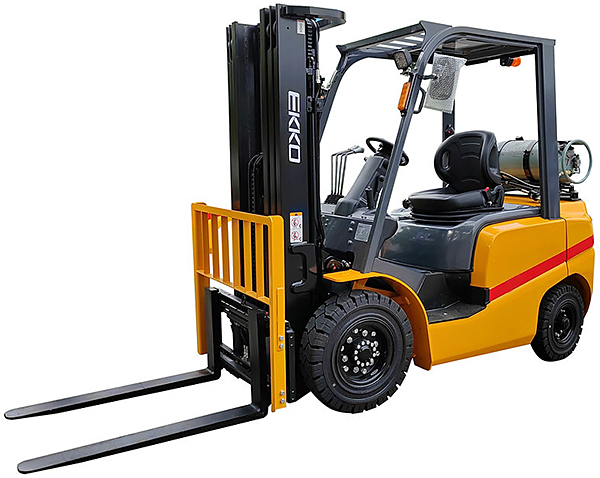

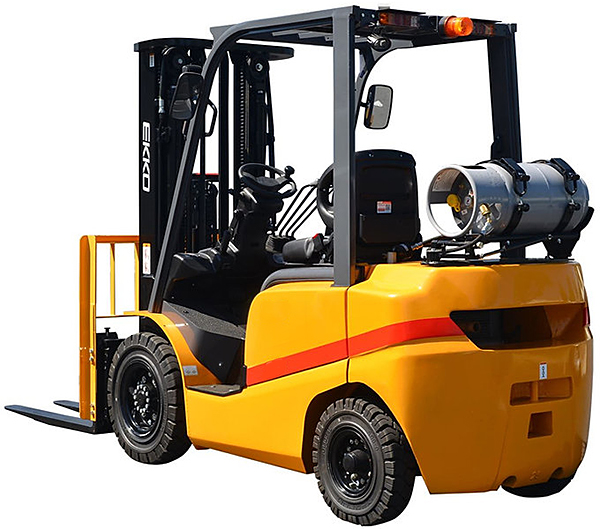

The Ekko EK25TLP Propane Forklift is a pallet moving marvel designed for use in stock areas, in warehouses, on loading docks, and on manufacturing floors. This Ekko forklift features a 185” max. fork height, adjustable width forks, side shifting forks, cushion connection and whole suspension cab, hydraulic floor pedal brake, Kubota PSI 2.4L engine, and a mast tilt angle of 6 degrees front and 12 degrees rear. Max. capacity At 24" Load Center (48"L pallet with evenly distributed load): 5,000 LBS up to 158" and 4,100 LBS 159" to 185". The maximum travel speed is 10.6 m.p.h. loaded. The Ekko EK25TLP Propane forklift is made of industrial grade components and a high quality Kubota drive engine to handle the roughest industrial environments. This Propane forklift meets is Tier 4 EPA compliant.
The capacity of the EK25TLP Ekko Forklift is rated at a 24" load center making it ideal for working with standard 48" long pallets.
Please check with HOF Equipment for a current lead time on the the Ekko EK25TLP Propane Forklift.
Specifications:
- Capacities At 24" Load Center: 0 to 158" 5,000 LBS | 159" To 185" 4,100 LBS
- Max. Raised Fork Height: 185" | Free lift 43.7"
- Individual forks are 42.1” long x 4.8” wide x 1.5” thick
- Mast Tilt: 6° front / 12° rear
- Width Adjustable and Side Shifting Forks
- Collapsed mast height 83" | Fully raised mast height 225"
- Min. Ground Clearance (at the mast): 4.3"
- Maximum Travel Speed: 10.6 MPH loaded | 11.8 MPG empty
- Operator controls including steering wheel, lift/lower, tilt, side shift, throttle, emergency stop button, battery discharge indicator gage, and horn located in comfortable cabin
- Electronic power steering
- Semi-suspension seat, and small steering wheel, electro-hydraulic direction changing, optimized hydraulic system
- Cushion connection & whole suspension cab absorb vibration
- Kubota PSI 2.4L Engine satisfies CARB 4 regulations
- Tier 4 EPA compliant
- Hydraulic controls and floor brake pedal
- LED headlights and brake lights
- Solid pneumatic tires
- Overall Size: 144.6"L x 45.2"W x 83"H (collapsed mast)
- Service Weight: 8,465 LBS
- Warranty: 1 year limited
