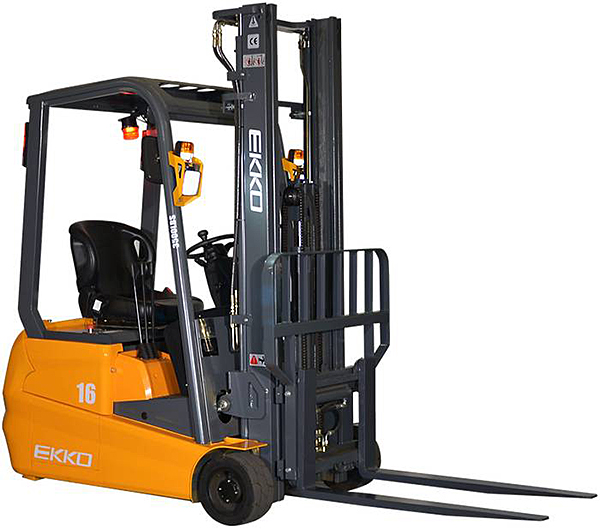

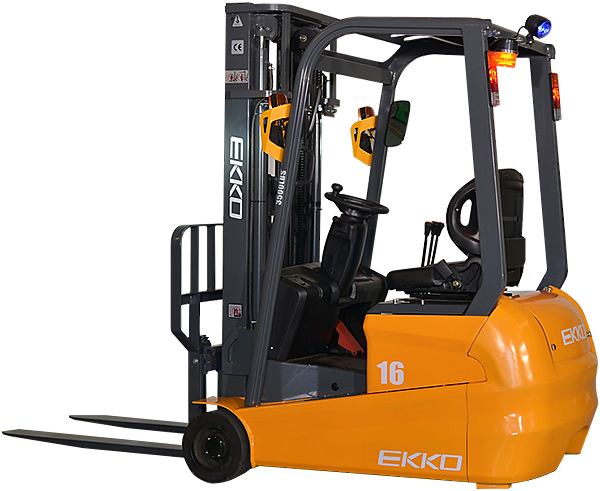

The Ekko EK16-177 3 Wheel Forklift has a 58.9” turning radius making it ideal for use in smaller aisles and tight spaces. This Ekko forklift is powered by 24v 320Ah battery and is perfect for use on loading docks, in warehouses, in manufacturing facilities and when loading and unloading trucks. Key specifications include a 189” max. fork height, side shifting forks, tilting mast/forks, electronic power steering, 24v 320Ah battery and charger (both included), and gradeability of 6% while loaded and 8% while unloaded. Capacities at 20" Load Center (40"L pallet with evenly distributed load): 0" to 120" 3,500 LBS | 121" to 140" 3,080 LBS | 141" to 160" 2,640 LBS | 161" to 177" 1,960 LBS (side shifting forks reduces all capacities by 440 LBS). Travel speed is 5 mph loaded and 6.2 mph unloaded. The Ekko EK16A-177 3 Wheel Forklift is constructed of steel and industrial grade components with high quality electric drive and lift motors to withstand the wear and tear of industrial environments.
The capacity of the EK16A-177 Ekko 3 Wheel Forklift is rated at a 24" load center. Lift capacity will be reduced when lifting a pallet longer than 48"
Please check with HOF Equipment for a current lead time on the the Ekko EK16A-177 3 Wheel Forklift.
Specifications:
- 24v 320Ah battery with 24v 50 AMP external direct connect charger (both included)
- Capacity At 20" Load Center (40"L pallet with evenly distributed load): 0" to 120" 3,500 LBS | 121" to 140" 3,080 LBS | 141" to 160" 2,640 LBS | 160" to 189" 1,960 LBS (side shifting forks reduces all capacities by 440 LBS)
- Max. Raised Fork Height 177" (Free lift 34.5")
- Side Shifting Forks
- Fork Tilt: 2° down / 4° up
- Collapsed Mast height is 81"

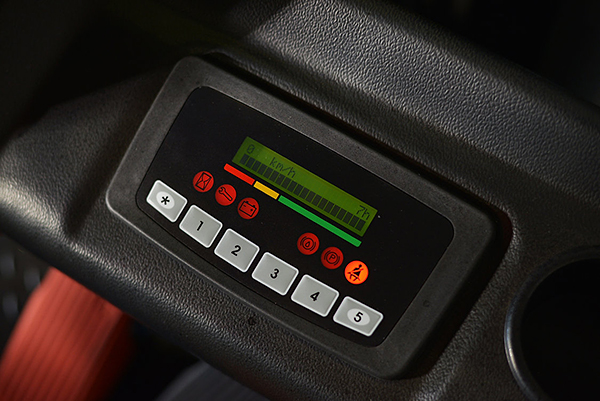

- Operator controls including steering wheel, lift/lower, side shift, tilt, throttle, emergency stop button, battery discharge indicator, and horn located in comfortable cabin
- LED headlights and brake lights
- Hydraulic power steering
- Gradability: 6% loaded / 10% unloaded
- 58.9" turning radius for use in tight areas
- Fork width adjusts from 7.9” O.D. to 26” O.D.
- Individual forks are 42.1” long x 4” wide x 1.4” thick
- Zapi controller
- Infinitely variable speed operation from 0 mph to 6.2 mph empty and 0 mph to 5 mph loaded. Travel speed is constant regardless of load.
- Lift speed is 10.2 i.p.s. empty and up to 4.7 i.p.s. loaded
- Lower speed is 15.7 i.p.s. empty and up to 11.8 i.p.s. loaded
- Drum brakes with electro-magnetic braking / electronic neutral braking for accurate control
- Drive Wheels 9.8" x 5" Cushion / Load Wheels 12" x 5" Cushion
- Overall Size: 107"L x 42.1"W x 84.75"H (collapsed mast)
- Service Weight: 5,200 LBS
- Warranty: 3 year full warranty on frame, forks and mast, 1 year limited warranty on battery
