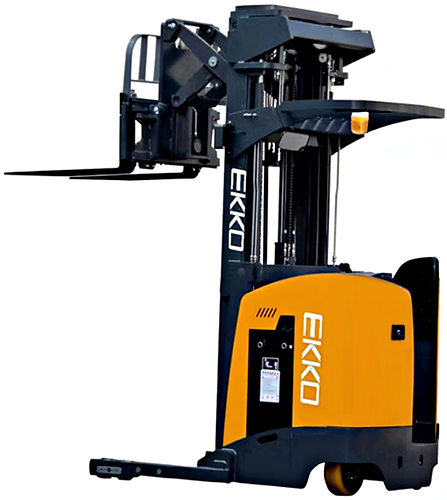

The Ekko EK18RRL stand up reach truck is designed to be the ideal combination of a standup forklift, reach stacker and walkie stacker. This versatile walkie reach truck is operated with the operator riding on the stacker in a standing position. Great for use in narrow isles in warehouses, in manufacturing environments, and on loading docks. The Ekko walkie reach stacker features a max. fork height of 196", extendable reach forks, width adjustable forks, tilting forks, side shifting forks, power steering, Curtis instrument controller, and LED head lights, brake lights, turn signals. Reach stacker comes standard with 48VAC 420Ah industrial battery and 480V (48V/65A) external direct connect charger. Travel speed is 5.6 m.p.h. fully loaded and lift speed is 7.48 i.p.s fully loaded. The Ekko EK18RRL stand up reach truck is constructed of robotically welded steel and industrial quality components for years of reliable service.
The capacity of the EK18RRL Ekko Stand Up Reach Truck is rated at a 24" load center making it ideal for lifting standard 48" long pallets with an evenly distributed load.
For current pricing, shipping cost, and lead time please add the Ekko EK18RRL Stand Up Reach Truck to the cart and request a quote.
Specifications:
- Walkie reach truck with stand up rider operation
- Capacities at 24" Load Center: 0" to 157" 3,960 LBS | 157" to 177" 3,520 LBS | 177" to 196" 3,080 LBS (side shifting forks reduces capacity by 330 LBS)
- Max. Raised Fork Height 196" (Free lift 53.1")
- Fork Reach Distance: 22.4"
- Side Shifting Forks
- Fork Tilt: 2° down / 4° up
- Collapsed Mast height is 96.4" / Fully Extended Mast Height is 240.9"
- Operator controls including steering wheel, lift/lower, fork reach & side shift, tilt, throttle, emergency stop button, battery discharge indicator, and horn located in the stand up cabin
- LED headlights, brake lights and turn signals
- Electronic power steering
- Gradability: 6% loaded / 10% unloaded
- 75" turning radius
- 48V 420AH industrial battery with 480VAC 48V/65A external direct connect charger (both included)
- Fork width adjusts from 7.9” O.D. to 35” O.D.
- Individual forks are 45.5” long x 4.7” wide x 1.6” thick
- Curtis controller
- Infinitely variable speed operation from 0 mph to 5.9 mph empty and 0 mph to 5.6 mph loaded. Travel speed is constant regardless of load.
- Lift speed is 9 i.p.s. empty and up to 7.5 i.p.s. loaded
- Lower speed is 11.8 i.p.s. empty and up to 9 i.p.s. loaded
- Drum brakes with electro-magnetic braking / electronic neutral braking for accurate control
- Polyurethane Drive Wheels 13.5" x 5.2" / Load Wheels 4.9" x 3.2"
- Collapsed Overall Size: 102.3"L x 54.7"W x 96.4"H
- Service Weight: 9,000 LBS
- Limited Warranty (parts only): 30 days wearable parts, 1 year on non-wearable parts & battery, 3 years on frame, forks and mast
